Product Details
Product Description
Product Description

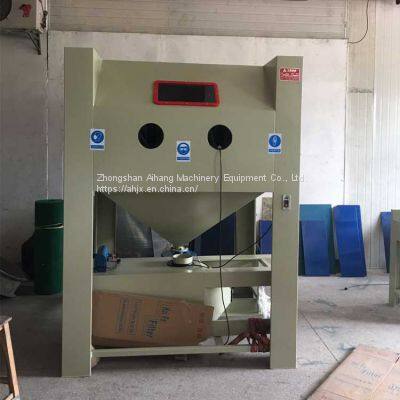

Overall dimensions of the host: 1500 * 1950 * 1900mm
Dimensions inside the work cabin: 1500 * 1500 * 830mm
Splitter motor: 220V/50HZ/550W
Power supply: 220V 50HZ
Machine lighting 220V 13W energy-saving lamp
Air volume of separator 8.5m3/min
Working pressure 5-7bar (kg/cm2)
Dust removal method: Equipped with a bag type dust removal box, using a foot switch to activate the pneumatic dust removal device and vibrate to remove dust. The operator only needs to step on the foot switch once or twice every hour to remove dust.
Machine capacity: 100kg
Machine net weight: 280kg
operational principle
This machine adopts suction sandblasting, which uses compressed air to flow at high speed in the spray gun to form negative pressure and generate injection effect. The abrasive in the cyclone separator box is sucked into the spray gun through a rubber hose, and then sprayed onto the surface of the workpiece at high speed with the compressed air flow from the nozzle, achieving the purpose of sandblasting processing.
1、 Local Features
1. This machine has a novel design, simple and reliable structure, convenient operation, good processing efficiency, and low energy consumption.
2. This machine is equipped with an adjustable cyclone separator that can separate reusable abrasives from useless small dust. The vacuum cleaner only absorbs dust, thus greatly reducing abrasive consumption.
3. The main components of this machine are imported parts, which are safe, reliable, and have a long service life.
2、 Scope of use
This machine can clean the rough surface, remove oxide skin, residual salt, and burrs of forged castings, welded parts, heat treated parts, stamped parts, and machined parts, and is used for pre-treatment processes before spraying and electroplating.
This machine is also used for spraying glass beads and strengthening the surface of polished parts. Suitable for single piece and small batch production of medium and small parts.
>>
