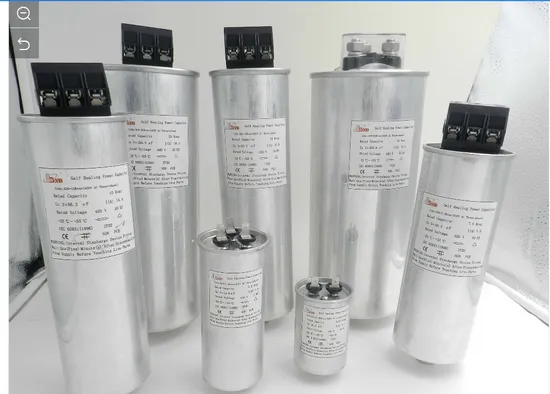

Power Shunt Capacitor (BKMJ, BSMJ) , Dry Type, 15kvar

US$7.60-23.40 1 Piece (MOQ)

Basic Info.

Model NO.

BKMJ

Packaging Type

Surface Mount

Capacitance

1-60kvar

Structure

Fixed Capacitor

Manufacturing Material

Polypropylene

Electrolyte

Polypropylene

Usage

Low Frequency Bypass

Tuning

Polystyrene Capacitor

kvar

1-60kvar

Items

Compensate Factor

Features

Small Size ,Low Loss

Advantage

Dry Type Non-Pollution

Types

Cylinder Type

Warranty Time

24 Months

Certificate

Ce ,ISO9001,RoHS ,IEC60831

Service

OEM &ODM

Phase

Three Phase or Single Phase

Rated Volatage

220VAC ,370VAC ,400VAC ,440VAC ,525VAC ,690VAC

Transport Package

1PCS/Box, 6 Boxes in One Carton

Specification

1-40KVAR

Trademark

BSD

Origin

China,

HS Code

85321000

Production Capacity

100000

Product Description

Product Description BKMJ ,BSMJ SERIES POWER CAPACITOR with UL810 ,CE ,IEC60831 ,ISO9001-2008 certificate and standard
1.Dry type power factor capacitor ,BKMJ series .three phase and single phase
2.,220-690VAC, 50/60HZ , 1-40kvar ,
3. small size and low loss ,shunt compensate factor capacitor .
4.offer OEM ,ODM service ,
5.24 months warranty time ,long life ,top quality .
6.CE, ISO9001-2008, IEC60831 standard.

Series	Cylinder type BKMJ power capacitor
Rated Voltage Range	From 220-690 VAC
Capacitor Connection	3 phase (1 phase on request)
Capacitor Frequency	50/60 Hz.
Capacitor Power Range	1- 50 KVAR
Dielectric	Metalized polypropylene film with self healing
Protection	IP 42 (IP 54 on request)
Discharge Resistors	Built in automatic discharge resistors included, less than 75V within 3 minutes after de-energizing the capacitor
Tolerance	±5%
Maximum Ambient Temperature	-25 °C--50°C (Other temperature range on request)
	Average temperature within 24 hours below 40°C&average
	temperature with a year below 30°C
Max. Relative Humidity	≤90%
Max. Altitude	≤2000m (Other altitude on request
Over Voltage Tolerance	1.1 UN (8 hours max. in every 24 hours)
	1.15 UN (30 minutes in every 24 hours)
	1.2 UN (5 minutes in every 24 hours)
	1.3 UN (1 minutes in every 24 hours)
Over Current Tolerance	30% permanently
Max. Surge Current	200 times of rated current
Dielectric Loss	≤0.2 Watt / KVAR
