plastic floor grid pigeon floor grate pigeon grille
Fibreglass grating frp molded grating
FRP grating application include floor systems, walkways, work platforms, stairs, ramps, trench covers and catwalks, Lanyu integral, long-lasting anti-slip top surface makes the grating of choice in many Industries. It is preferred when slippery working conditions are present. Whether your are building a Power plant, Chemical plants, Marine engineering, Port Engineering, Lanyu will cover your project and stay in your budget.
plastic floor grid pigeon floor grate pigeon grille

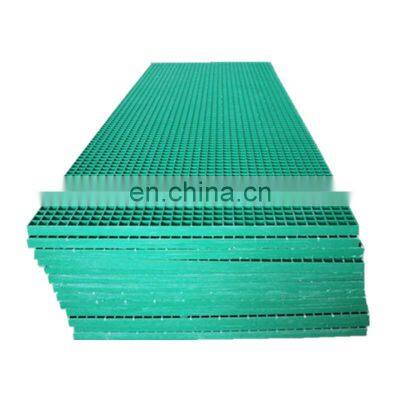

FRP Molded Grating is made of vertical and horizontal continuous fiberglass fully soaked in unsaturated polyester resin giving perfect bi-directional mechanical properties.Combining unmatched corrosion resistance with strength, long life and safety, Molded Gratings provide the ultimate in reliable performance, even in the most demanding corrosive conditions. Besides it is easy to cut and install. LanYu offer the widest selection with panel sizes ,colors and slip resistant surfaces, Clients can avail FRP Gratings suiting your specific requirements.
FRP grating advantage:
● Corrosion Resistance
● Anti-slippery
● Light Weight but High Loaded Strength
● Various Sizes and Colors Available
● Easy Installation and Maintenance
Resin Base
| Description
| Corrosion Resistance
| Available Colour
| Max.Oper.Tem
|
Vinyl Ester
| Superior Corrosion Resistance and Fire Retardant
| Excellent
| Dark gray Orange Yellow
| 110℃
|
Isophthalic
| Industrial Grade Corrosion Resistence and Fire Retardant
| Very Good
| Green Yellow Light Grey
| 105℃
|
Orthophthalic
| Moderate Corrosion Resistence and Fire Retardant
| Normal
| Green Light Grey
| 70℃
|
Fibreglass grating frp molded grating
FRP Chemical Resistance Light Weight Corrosion Resistant FRP Fiberglass Reinforced Plastic Flooring Gratings
>> Exellent loadability
>> Lightweight, high impact
>> Fire resistant
>> Slip and age resistant
>> Corrosion & chemical resistant
>> Non-magnetic & insulation
Moulded Grating Size
Mesh Size
(mm)
| Full panel size
(mm)
| Thickness
(mm)
| Recommended Span
(200kg/m2)
|
38.1x38.1mm
(1.5''x1.5'')
| 1220x3660mm
1000x4038mm
1530x3130mm
1220x4007mm
1526x4046mm
|
25mm
|
≤800mm
|
| 1220x3660mm
1220x4038mm
| 30mm
| ≤1000mm
|
| 1220x3660mm
1530x4007mm
1220x4038mm
|
38mm
|
≤1300mm
|
Upper19x19mm
Below: 38.1x38.1mm
| 1224x4042mm
| 30mm
(double mesh layers)
| -
|
50.8x50.8mm (2''x2'')
| 1220x4020mm
| 50mm
| ≤1700mm
|
100x25mm (4''x1'')
| 1010x4030mm
| 25mm
| -
|
plastic floor grid pigeon floor grate pigeon grille
FRP Molded Grating is widely used in oil industry, power engineering, water & waste water treatment, ocean survey as working floor, stair tread, trench cover, etc. and is an ideal loading frame for corrosion circumstances.
Packing & Delivery
Fibreglass grating frp molded grating
|
|
Packing
| 1. Protected by stretch film;
|
| 2. Fasten by packing banding and packed on pallet
|
| 3. Grating corners are protected by FRP angle or thick papercard.
|
Delivery
| 1. Stock grating: 3-5 working days.
|
| 2.. Manufacturing: 1-2 weeks, or depends on the order quantity.
|
Welcome your inquiry about FRP grating anytime.Cathy is always here!
>>
