At3051 4-20mA Hart Smart Gauge Absolute Pressure Transmitter Dp Transmitters

Product Description

AT3051 4-20mA HART Smart Gauge Absolute Pressure Transmitter DP Transmitters er Product Description
Summary:

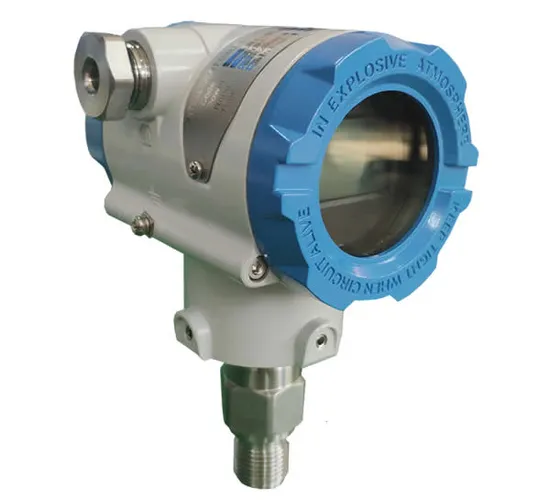

AT3051TG(TA) series is a digital pressure transmitter designed for industrial pressure measurement applications. The AT3051TG(TA) offer configurations for gauge pressure, absolute pressure and vacuum pressure including integrated solutions for industrial applications.

Parameters:

Process Fluid	Liquid, Gas, Vapor
Applicat ion	Differential Pressure, Gauge Pressure,Absolute Pressure
Working Temperature	-25 to +95C
Current Output	4 - 20 mA 2 wires Har t Protocol
Power Supply	24VDC
Ambient Temperature	-25 to +100C
Process connections	1/4 - 18 NPT or 1/2 - 14 NPT
Electrical Connections	1/2"NPT or M20*1.5
Enclosure	IP65
Intrinsically Safe	ia II C T6
Explosion proof	d II B T5

Details:
LCD display meter intelligent, clear reading.
Advanced terminals, the unique 30 degree angle
Dimensions:
Order sheet

Name	Specification code	Explanation
AT3051GP		Yantai Auto Instrument Capacitance negative pressure sensor
	4	(0.062-0.374)bar
	5	(0.31-1.868)bar
	6	(1.17-6.9)bar
	7	(3.45-20.68)bar
	8	(11.7-68.90)bar max to 100bar
Output Signal	F	analog type 4-20mA
	H	4-20mA, HART Protocol Digital Communication
Display Header (optional)	M1	Without LCD display
	M2	With LCD display
Process connection	A	1/2"NPT
	B	Request

Company Profile
Auto Instrument Making Co., Ltd has been committed to crafting high-end equipment since 1994. Specifically, we focus on manufacturing
measures and process control instruments in the industrial pressure measurement, which pursues to be the cherry on top by adhering
to the accumulated craftsmanship. Our main products include differential pressure transmitters, pressure transmitters, capacitive pressure sensors, electromagnetic flow meters, vortex flow meters, and radar level which are widely used in the industries of electrical power, petroleum, metallurgy, medicine, food, brewing, textile, building material, etc..
As a source manufacturer, we are capable of modifying or remolding the core production equipment to satisfy the specified product features.
The concepts of modification works apply to several annual rings, including welding systems, pressure calibration systems, diaphragm coating systems, and so on.
FAQ
1. Q: Are you a manufacturer or trading company?
A: We are the manufacturer for pressure, flow and level transmitters since 1994.

2. Q: What's your quality control system?
A: As an ISO9001:2008 certificated manufacturer, we have a strict quality control system, and each product is done with fatigue testing, calibration, temperature compensation before shipment. High quality is guaranteed.
3. Q: Is there MOQ with your product?
A: We have no MOQ limits, 1pc for testing is acceptable.

4. Q: Do you provide customized products?
A: Yes, we can print your logo on our products; OEM, ODM & customization are welcome.

5. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 12 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.

6. Q: What is the lead time of your product?
A: We are a factory, our lead time is always within 10~15 working days for products without customization, but lead-time will vary based on different products. You can check detailed lead-time with our sales.
7. Q: What international certificates do you have for your products?
A: We have CE, RoHS, SIL,IOS, ATEX. AT3051 4-20mA HART Smart Gauge Absolute Pressure Transmitter DP Transmitters

---
