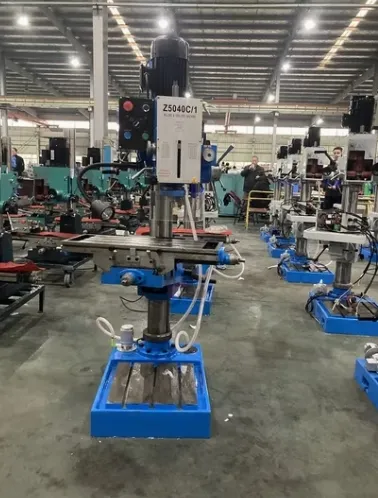

Vertical Column Type Milling Drilling Machine Z5032c Z5040c Z5045c Metal Cheap Vertical Drilling Machine

Product Description

Vertical Column Type Milling Drilling Machine Z5032C Z5040C Z5045C Metal Cheap Vertical Drilling Machine
Product Description
Main technical Specifications:

ITEM	Z5032C	Z5040C	Z5045C
Max.drilling capacity	32mm	40mm	45mm
Spindle taper	M.T.3 or R8	M.T.4	M.T.4
Spindle travel	130mm	130mm	130mm
Step of spindle speed	6	6	6
Range of spindle speed 50Hz	80-1250 r.p.m	80-1250 r.p.m	80-1250 r.p.m
60Hz	95-1500 r.p.m	95-1500 r.p.m	95-1500 r.p.m
Min.distance from spindle axis to column	283mm	283mm	283mm
Max.distance from spindle nose to worktable	700mm	700mm	700mm
Max.distance from spindle nose to stand table	1125mm	1125mm	1125mm
of headstock	250mm	250mm	250mm
Swivel angle of headstock(horizontal /perpendicular)	360°/±90°	360°/±90°	360°/±90°
of worktable bracket	600mm	600mm	600mm
Table size	730×210mm	730×210mm	730×210mm
Size of stand worktable of availability	417×416mm	417×416mm	417×416mm
Forward and afterward travel of worktable	205mm	205mm	205mm
Left and right travel of worktable	500mm	500mm	500mm
Vertical travel of worktable	570mm	570mm	570mm
Motor Power	1.1kw	1.1kw	1.5kw
speed of motor	1400rpm	1400rpm	1400rpm
Net weight/Gross weight	430/500kg	432/502kg	435/505kg
Packing size	1850x750x1000mm	1850x750x1000mm	1850x750x1000mm

Detailed Photos
Company Profile
Certifications
FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.

---
