| US$32,846.72-37,226.28 | 1 set (MOQ) |

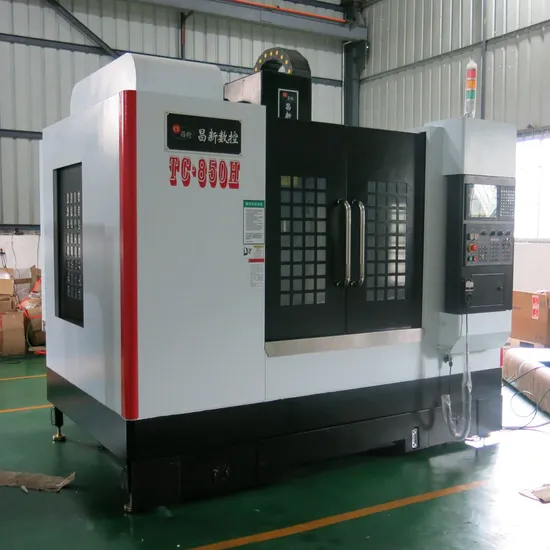

| CNC Milling Machine VMC850 | |||
| Table | Size | mm | 1000*500 |
| Travel of 3 axis(X/Y/Z) | mm | 800/500/500 | |
| Max table load | kg | 600 | |
| T-slot | Number*width*space | mm | 5*18T*100 |
| Spindle (direct drive) | Spindle taper | BT40 | |
| Spindle center to column | mm | 550 | |
| Spindle nose to table | mm | 120-620 | |
| Max spindle speed | rpm | 12000 (standard) | |
| Spindle Motor power | kw | 7.5 | |
| Accyracy | Positioning accuracy | mm | ±0.005/300 |
| Repeatability | mm | ±0.003/300 | |
| Axis motor | Power of X/Y/Z | kw | 2.0/2.0/3.0 |
| Feeding Speed | Rapid feed of X/Y/Z | mm/min | 48000 |
| Cutting feed of X/Y/Z | mm/min | 12000 | |
| Parameters | Weight | kg | 5500 |
| Dimension(L*W*H) | mm | 2680*2265*2400mm | |
| Power | v | 380/415 | |
| Bearing | Japan NSK or German FAG optional | ||
| Linear guide rail and ball screw | Taiwan Hiwin | ||
| Coupling | German BK3 SW*J | ||
| Main electrical accessories | German Schneider, Merlin Gerin | ||
| Circuit breakers and relays | German Schneider, Merlin Gerin | ||
| Working LED lamp | Taiwan | ||
| Hand control electronic hand wheel | Taiwan | ||
| Tool Magazine | Taiwan arm type tool magazine with 24 tools capacity | ||
| Control System | Taiwan Syntec, Japan Mitsubishi, Japan Fanu , Germany Siemens optional | ||
| Motor | Japan YASKAWA /Mitsubishi /Fanuc/Siemens Servo Motor | ||
| Accessory | 1.Tool box (1 set) 2.Tool Holder(2 pcs) 3.vise and Lock knife seat (1 set) 4.High pressure spray gun(1 pcs) 5.Chip conveyor 6.Oil cooling station 7.Collets (4 pcs) 8.Hand Wheel(1 pcs) 9.Machine operating manual 10.Operation and programming manual 11.Servo Motor and Controller Manual | ||
