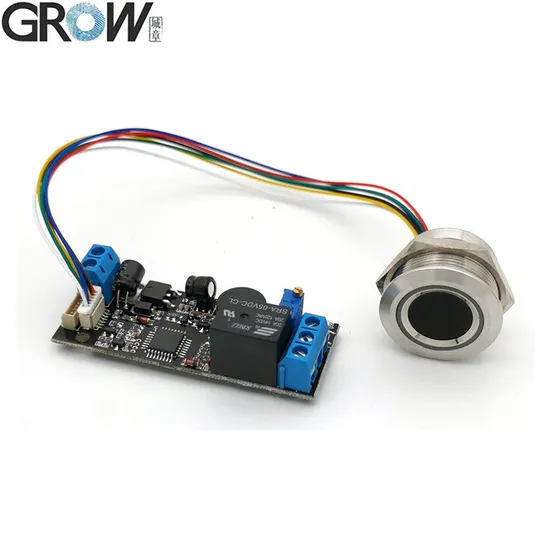

Grow K202+R503 DC12V Fingerprint Access Control Board

Product Description

K202 Technical Parameters·P1: Power supply: DC12V
·Output: Relay(Max. current:10A)
·Standby current: 15uA
·Fingerprint capacity: 120 pieces
·Size: 64.4*25.4mm
·P2: MX 1.0mm space 6 Pin Fingerprint Module(can connect R502,R502-A,R503)
·P3: MX 1.25mm space 6 Pin Fingerprint Module(can connect R300,R301T,R303,R303T,R305,R306,R307,R501)


K202 is designed for low power consumption, the power supply is DC12V, the relay time can be adjusted by rotating the button, relay time: 0.5-13 seconds.
It is very easy to register fingerprint, just need to press SET button to register fingerprint and long press SET button to back to factory default.
K202 Operation Instruction1.SET Button:
Press SET button shortly,blue indicator light flash fast and system in register state, put the finger on fingerprint collection area, fingerprint register successful when hearing music. Fingerprint can be registered continuously when system in register state; if no need adding fingerprint more, waiting a few seconds.
2.Back to factory default:
Press SET button until hear "Di" long beep and music,means initialization operation successful.
3.Set Relay Time:
Rotate K2 to set the closing time of the relay from 0.5 to 13 seconds. The relay is contact output, switch signal, no voltage output.
4.Usage:
Press the finger,the relay closes after the fingerprint passes, and the closing time is determined by K2.

Note: 1. All indicator lights are off in standby state, and the lights are on in working state;
2. Any fingerprint can be used in the factory state, but the function will be invalid after the fingerprint is registered.


K202 can be used together with R300,R301T,R303,R303T,R305,R306,R307,R501,R502,R502-A,R503 fingerprint module
R503 Specification

Model	R503
Type	Capacitive Fingerprint Module
Interface	UART(TTL)
Resolution	508 DPI
Voltage	DC 3.3V
Fingerprint Capacity	200
Sensing array	192*192 pixel
Working current	20mA
Standby current	Typical touch standby voltage: 3.3V, Average current: 2uA
Fingerprint module external size	Diameter 28 (mm)
Fingerprint module inner size	Diameter 23.5 (mm)
Fingerprint module height	19 (mm)
Effective collection area	Diameter 15.5 (mm)
Connector	MX1.0-6Pin
LED Control	YES
LED Color	Blue and Red
Scanning Speed	< 0.2 second
Verification Speed	< 0.3 second
Matching Method	1:1; 1:N
FRR	≤1%
FAR	≤0.001%
Work environment	-20C ---60C
Work Humidity	10-85%
Anti-static capacity	15KV
Abrasive resistance intensity	1 million times
Communications baud rate (UART):	(9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps)

Product Files·Provide Free Reference SDK Files for Arduino, Android,.Net,Windows and so on.
·Provide User Manual

You can download the R503 user manual from this website link:
https://hzgrow.en.made-in-china.com

You can dowload the K202 user manual from this website link:
https://hzgrow.en.made-in-china.com

If need SDK files,pls contact us.

---
