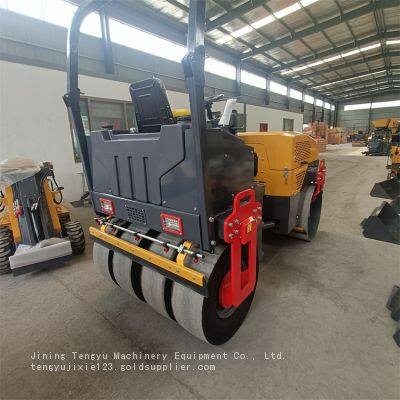

4 ton front steel wheel rear rubber wheel roller manufacturer ride-on roller supply

Product Details

Product Description

Product Description
Model TY-JST1400 Travel Engine speed 0-12km/h Model Changchai ZN490B Turning radius 3600mm Type Vertical four-cylinder water-cooled, electronic fuel injection National III emission standard Climbing ability 30% Power 49HP/3000rpm Compacting Fuel tank capacity 36L Static linear load front/rear 135/97N/cm Fuel consumption rate 260g/kw·h Nominal amplitude 0.5mm Dimensions Vibration frequency 70Hz Steel drum width (front, rear) 1400mm Exciting force 45kN Steel drum diameter (front, rear) 820mm Working Total length 2880mm Drive form Hydraulic two-wheel drive Total width 1560mm Vibration form Hydraulic front wheel vibration Total height (excluding anti-collision beam) 1950mm Steering form Hydraulic steering Packing size3100x1600x2100mm Sprinkler type: electronically controlled pressure atomized water spray Working weight Number of rubber wheels: 4 Working weight: 3900kg

---
