Universal Metal Vertical Milling Machine X5032/X5032b/X5032h/X5032bh

US$15,000.00-18,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

X5032/X5032B/X5032H/X5032BH

Object

Hardware

Structure

Vertical

Milling Cutter Type

Vertical Milling Cutter

Milling Cutter Structure

Overall Welding Tooth

Controlling Mode

CNC

Automatic Grade

Semiautomatic

Precision

Certification

CE, ISO 9001

Condition

New

Transport Package

Wooden Case/Wooden Bracket/Nude Packing

Specification

2294x2050x2084

Origin

China

HS Code

8459619000

Production Capacity

200set/Month

Product Description

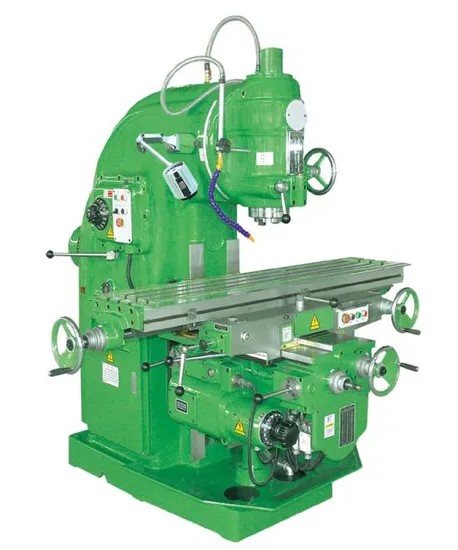

Vertical Milling Machine X5032/X5032B/X5032H/X5032BH
Specification:

Model No.	X5032	X5032B	X5032H	X5032BH
Item No.
Specifications
Table size	320x1325 mm	320x1600 mm	320x1325 mm	320x1600 mm
T-slots ( NO.Width/Pitch)	3/18/70	3/18/70	3/18/70	3/18/70
Longitudinal travel (manual/auto)	700/680 mm	900/880 mm	700/680 mm	900/880 mm
Cross travel(manual/auto)	255/240 mm	255/240 mm	255/240 mm	255/240 mm
Vertical travel(manual/auto)	370/350 mm	370/350 mm	460/440 mm	460/440 mm
Rapid feed speed X/Y/Z	2300/1540/770 mm/min	2300/1540/770 mm/min	2300/1540/770 mm/min	2300/1540/770 mm/min
Spindle
Spindle bore diameter	29 mm	29 mm	29 mm	29 mm
Spindle taper	7:24 ISO50	7:24 ISO50	7:24 ISO50	7:24 ISO50
Spindle speed range	30-1500 r/min	30-1500 r/min	30-1500 r/min	30-1500 r/min
Spindle speed step	18 steps	18 steps	18 steps	18 steps
Stroke of spindle quill	70 mm	70 mm	70 mm	70 mm
Max,swivel angle of vertical milling head	±45°	±45°	±45°	±45°
Distance between spindle nose and table surface	30-400 mm	30-400 mm	30-490 mm	30-490 mm
Distance between spindle axis and column guideway	350 mm	350 mm	350 mm	350 mm
Other
Feed motor power	1.5 kw	1.5 kw	1.5 kw	1.5 kw
Main motor Power	7.5 kw	7.5 kw	7.5 kw	7.5 kw
Overall size(L x Wx H)	2294x1770x1904 mm	2294x2050x1904mm	2294x1770x2084mm	2294x2050x2084
Net weight / Gross weight	2900/3200 kg	3000/3300 kg	3000/3300 kg	3100/3400 kg

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1).12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.
