Zenith High Quality Large Capacity Stone Crushers and Shapers

Product Description

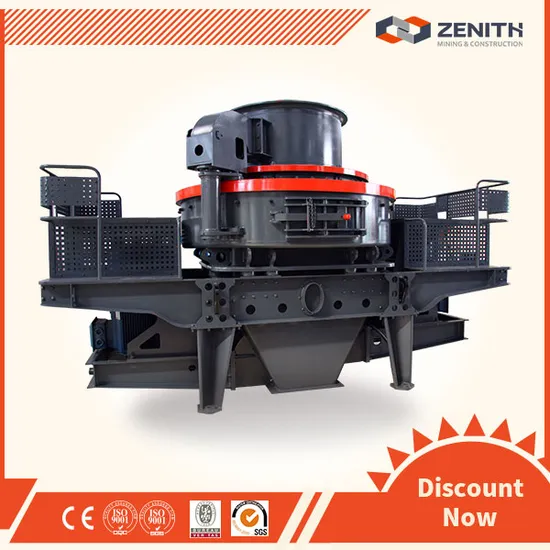

Zenith high quality large capacity stone crushers and shapers
stone crushers and shapers is a new generation high effective product which introduces German technology, and owns many independent patents property. It integrates three crushing methods into one. All of these made it the core equipment in sand making industries. It is widely used in a variety of metals and non-metallic minerals, cement, refractories, abrasives, glass raw materials, construction aggregate, sand, metallurgical and other industries. Applicable for medium and fine crushing of various ores and rocks, such as iron ore, non-ferrous metal ore, corundum, bauxite, quartz sand, corundum, perlite, basalt materials
stone crushers and shapers Feature:
1, deep cavity-type rotor design is optimized to increase material pass-through volume by 30%.
2, when wear shield partial wear out, put upside down, material utilization improved, and service life increase more than 48%.
3, modular-design hammer, just to replace worn parts when wear out, it can reduce cost more than 30%. Add vice hammer, which effectively prevent damage to stand plate after wear out.
4, the core abrasion-resistant material is high degree wear-resistant and temperature-resistant material which used in American important industries.
5, diamond-shaped impact block, avoid stand plate damage after wear out.
6, bearing uses Japanese, Swedish and American international brand.
7, optimal shooting mouth and more fluid curve-shaped design reduce material flow resistance, improve material pass-through capacity as well.
8, dual-use bulk material plates, it is easy to achieve two feeding method conversion.
9, special seal structure in the spindle end, ensure no oil leak even without oil seal.
10, hydraulic openings device uses Japan imported parts, it is easy and quick to move upper lid, so the internal mechanical overhaul and replacement cost less labor effort.
11, use high protection motor, which features high efficiency and low noise. The motor is in line with International Electrotechnical Commission (IEC) standard, F-class insulation and IP54/55 protection level.
stone crushers and shapers technical data

Model	Feed at center&sides	Feed at center	Soft Material	Hard Material	REV (r/min)	Power (kw)	Motor Model	Machine Size (mm)
	Capacity (t/h)		Max.Feeding (mm)
B-7611	120-180	60-90	35	30	1700-1890	4-55×2	Y250M-4/55	4100×2250×2258
B-8518	200-260	100-130	40	35	1520-1690	4-90×2	Y280M-4/90	4140×2280×2425
B-9526	300-380	150-190	45	40	1360-1510	4-132×2	Y315M-4/132	4560×2450×2780
B-1140	450-520	225-260	50	45	1180-1310	4-200×2	Y315L2-4/200	5100×2690×3200

---
