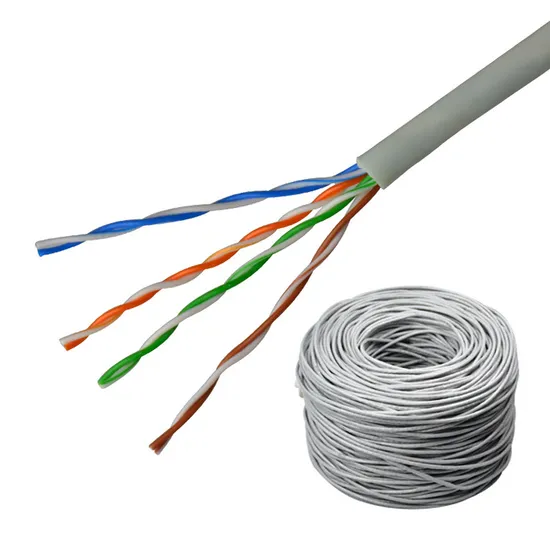

1000FT Cat5e Unshielded (UTP) PVC Jacket 0.50mm 24AWG Ethernet Cable

Product Description

U/UTP CAT 5E Twisted Pair Installation Cable
LAN CABLE
Construction
Conductor:			24 AWG Solid Bare Copper
Pairs:			4 Pairs
Insulation:			0.91 mm HDPE
Insulation Colors:			Blue-White/Blue,Orange-White/Orange
			Green-White/Green,Brown-White/Brown
Rip Cord:			Cotton
Out Jacket:			5.1±0.2 mm PE
Electrical Characteristics
Impedance			1 - 100MHz 100±15 Ohms
Insulation Resistance			>5000MΩ*KM
Dielectric strength			DC 2500V 2S
Max.Conductor DC Resistance 20ºC			9.5 Ohms/100m
Res. unbalance (%)			Max. 2.5
Pair to Ground Capacitance Unbalance			330 pF/100m
Transfer Impendance			Max 10 mOhms/m @100Mhz
Installation temp.			-30 - 50ºC
Operation temp.			-20 - 75ºC
Application
• Meets or exceeds requirements of ANSI/TIA-568-C.2 Category 5e and ISO 11801 2nd Edition Class D channel standards.
• Meets or exceeds requirements of ANSI/TIA-568-C.2 and IEC 61156-5 Category 5e component standards.
• Third party tested to Category 5e channel compliance.
• Meets requirements of IEEE 802.3af and IEEE 802.3at for PoE applications.
• Descending length cable markings enable easy identification of remaining cable which reduces installation time and cable scrap.
• Color Availability: Additional cable colors available.
Performance Characteristics
Frequency	RL (Min.)	Insertion Loss(Max.)	Propagation Delay (Max.)	Delay Skew(Max.)	NEXT (Min.)	PSNEXT (Min.)	ELNEXT (Min.)	PSELNEXT (Min.)
MHz	dB	dB/100m	ns/100m	ns/100m	dB	dB	dB/100m	dB/100m
1	20.0	2.2	570.0	45.0	65.0	62.0	61.0	61.0
4	23.0	4.2	552.0	45.0	56.0	53.0	48.0	48.0
10	25.0	6.5	545.0	45.0	50.0	47.0	41.0	41.0
16	25.0	8.4	543.0	45.0	47.0	44.0	36.0	36.0
20	25.0	9.3	542.0	45.0	45.0	42.0	34.0	34.0
31.25	23.6	11.6	540.0	45.0	42.0	39.0	31.0	31.0
62.5	21.5	17.0	539.0	45.0	38.0	35.0	25.0	25.0
100	20.1	22.0	538.0	45.0	35.0	32.0	21.0	21.0
Note: The above transmission performance tor the 100M, 20±2ºC under the conditions tested.
Order Informations
Marking			U/UTP CAT 5E 4PR 24AWG PE XXX (or Per customer's request)
Inner Package			305m/Spool,305m/Reel (or Per customer's request)
Outer Package			Color Box, Pallet (or Per customer's request)
Delivery time			Normally 25 days after received the deposit.

Our Service: 1) Quick Response --All inquiries will be replied within 24 hours. 2) Professional Quotation --All prices will be quote according to customers' detailed specifications & requirements. 3) OEM & ODM Service 4) Can print your own brand on the jacket printing with foot or meter marking. 5) Make customized designs for stickers, drums, outer cartons, etc. 6) Stable Quality --All materials and products passed restrict QC procedures,comply with international standards. 7) Fast Delivery --LCL orders,15days after confirmation; FCL orders, 20 days after Confirmation in usual. Good After-sales Service --We chose the fastest vessel to POD for delivery our goods to clients, --All Documents will be issued according to clients' instructions, to save troubles from local customs. --Any complaint to quality or packing issued will be responded, and terminated with proper solutions for clients. FAQ: Q1: What kind of cable do you produce? A: We specialized in producing Coaxial Cable,Network Cable,Patch Cord,CCTV Cable,Optical Fiber Cable, Speaker Cable,Alarm Cable,Telephone Cable,Drop Wire,Audio Cable,HDMI Cable,Control Cable etc We also provide cable accessory products such as connector, cable clip,cable tie,crimping tool, antenna dishe,splitters,amplifer,optical receiver,optical transmitter etc Q2: What's your MOQ? Can you offer free samples? A: Our MOQ is 10KM per item. Free samples can be sent to you if available in stock,freight cost need to be paid by your side. Q3: What's your delivery time? A: Normally, our delivery time is 15 days after received deposit,it base on the quantity of the order. Q4: What's your payment term? A: We accept T/T, L/C,Western Union.Other payments accept through negotiation. Q5:What's your trade term? A: We accept FOB ShangHai or Ningbo,CFR,CIF,EXW term Q6: Where is your factory located? How can I visit there? A: Our factory is located in Lin'An HangZhou City,ZheJiang Province,China. 1 hour drive from HangZhou XiaoShan International Airport 3 hours drive or 1 and half an hour by high speed rail to railway station from shanghai or Ningbo

---
