CNC Hydraulic Press Brake with High Quality Custom Dies

Product Description

Product DescriptionNote: Dear customers, machines due to different parameters, configuration and other requirements will produce different prices, please consult customer service.
To view more products, please click on product keywords...

Main Products
Press Brake	Laser Cutting Machine	Bending Center
Shearing Machine	Handheld Laser Welder	punch and shear machine
Rolling Machine	grooving machine	punching machine

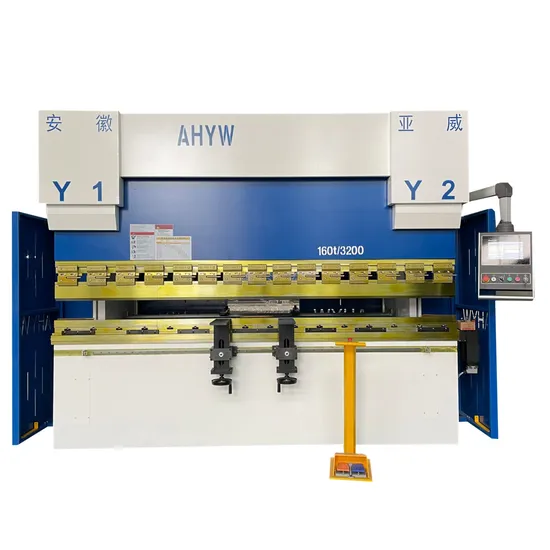

CNC Hydraulic Press Brake with High Quality Custom Dies
Press brake, also known as a brake press, is a machine tool for bending sheet and plate material, most commonly sheet metal. It forms predetermined bends by clamping the workpiece between a matching punch and die.
CNC press brake use for continues and complex working pieces manufacturing, advance in Efficiency.
Main features• Advanced proportional valve controls the hydraulic cylinders to work synchronously and achieve precise repeatability performance• Be capable of be controlled at random point within the stroke• Repeatability precision +/-0.01mm,parallelism precision +/-0.02mm• Deflection compensation table or crowning system for high precision• Holland Delem DA53T CNC together with linear scale, Bosch-Rexroth valves, servo motors and other famous brand elements to ensure excellent performance
Machine BlockYWB series cnc press brake features a rigid frame for minimum deflection under the load. Machine welding is made by welding aparatus & welding robots. After the welding,we make stress relief process by vibration system. After the stress relief process machine frame goes to CNC 5 axes machining centers for accuracy. All referance surfaces and connection holes are machined. By all this processes machine frame sensivity is protected for a long life time.
CNC BackgaugeAHYW press brake are provided are equipped with a backgauge constituted by a solid structure in order to assure the best repetitiveness and high precision in axes positioning.
DA53T CNC System* "Hot-Key" touch navigation* 10.1″ high-resolution color TFT* Up to 4 axes (Y1, Y2 + 2 aux. axes)* Crowning control* Tool/material / product library* Servo and frequency inverter control* Advanced Y-axis control algorithms for closed-loop as well as open-loop valves* TandemLink (option)* USB memory stick interfacing* Profile-T offline software
Details Images
Technical Parameters
Packing&Shipping
Company Profile
FAQ
Q1. Are you a factory or a trading company?
A: Anhui Yawei Machine Tool Manufacturing Co, Ltd is a professional manufacturer of press brake, shearing machine, fiber laser cutting machine and other sheet metal processing equipment. We have more than 40 years of manufacturing experience, and our products were exported to more than 100 countries and regions.
Q2. This is the first time I use this kind of machine, is it easy to operate?
A: Detailed installation and operation instructions are sent to you free together with the machine. Free training courses are offered in our factory. Engineers are available to serve overseas but all the expense needs being paid by your side. Video technical support and online support are provided, 24 hours technical support by calling, video and email.
Q3. What is your normal lead-time?
A: Lead-time for a routine order would typically be 25-30 days. However, this varies with a number of factors including order size, machine model, workpiece complexity and shop load, to mention a few. Lead times are provided with all quotations. Please advise us if a rush order is required and we can usually accommodate.
Q4. Where are you located? How do I get there?
A: Anhui Yawei Machine Tool Manufacturing Co, Ltd is located in Maanshan city, Anhui Province, China; near Nanjing and Shanghai.
You can fly to Nanjing airport or Shanghai Hongqiao airport, or take high-speed rail to Nanjing South Railway Station, then we will pick you up.

---
