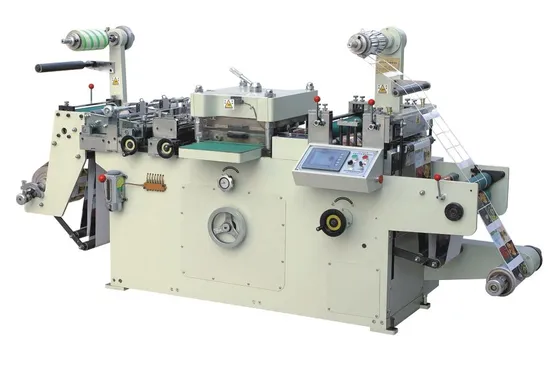

Hsm-320 Automatic Self Adhesive Label Die Cutting Machine

Product Description

Characteristics:
This machine is applicable to die cut through platenwith high precision,while the computer controls the slices and conveyor.The sides of trademarks and longitudinal route are tracked through three photoelectric eyes to position,while the die cutting,discarded delivery or auto trademark labeling can be finished in the processing of one web.The machine is applicable to die cut paper self adhesive trademark, Dacron film trademark and laser anti-false trademark.It is an ideal complete set of soft printing machine,continuous thread printing machine,relief printing machine and die compress machine for anti-false trademarks.
Technical Parameters:

Model	ZBS-320	ZBS-420
Die Cutting speed	30-180time/min	30-100time/min
Max Feeding Diameter	450mm	450mm
Max web width	320mm	420mm
Max Die Cutting Width	300mm	400mm
Max Die Cutting Length	300mm	400mm
Positioning Precision	0.10mm	0.10mm
Main Motor power	2.2kw	3.7kw
Total Power	3.5kw	5.5kw
Power Supply Voltage	220v±10%	380v±10%
Weight	(about)1500kg	(about)1800kg
Overall Dimension	2600x950x1400mm	2800x1050x1400mm
