Shrink Sleeve Pet Sleeve Label Center Gluing Sealing Machines Bottle PVC Label Seaming Machine

US$22,000.00-26,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

KTGP-S

Automatic Grade

Automatic

Packaging Material

Sealing Machine

Application

Cosmetics, Cleaning, Detergent, Drinks, Oil, Dairy Products, Skin Care Products, Hair Care Products, Tea, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour, Seasoning, Shrink Sleeves Seaming Machine

Type

Shrink Sleeves Seaming Machine

Product Name

Shrink Sleeves Seaming Machine

Keyword

Vertical Style Sealing Machine

Keyword 1

Bag Shrink Sleeve Seaming Machine

Keyword 2

Continuous Band Sealer

PVC Film Seaming

Yes

Pet Film Seaming

Yes

Auto Gluing System

Yes

Auto Tension System

Yes

with PLC Sysmtem

Yes

EPC Control System

Yes

Perforation System

Yes

Transport Package

Wood

Specification

3700 x 1500 x 1750mm

Trademark

KETE

Origin

China

Production Capacity

20 Sets/ Month

Packaging & Delivery

Package Size

370.00cm * 150.00cm * 175.00cm

Package Gross Weight

1000.000kg

Product Description

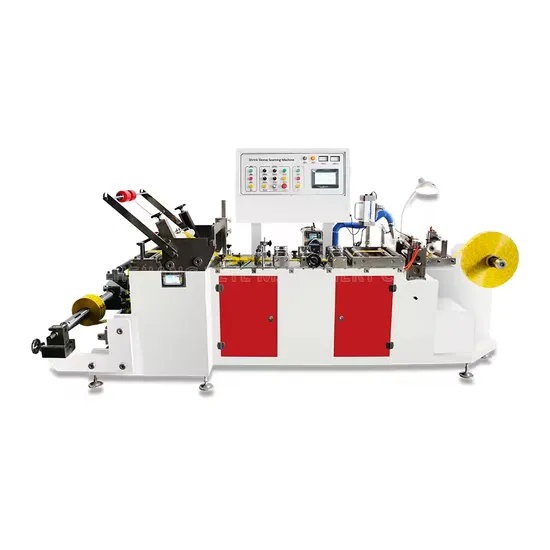

This High Speed Shrink Sleeve Seaming Machine Is Used To Seam PVC Or PET Shrink Film Material Into Tube Type. It Is Widely Used for
Bottle Labels or Wine Bottle Capsules Or Security Sealing Capsules. Ω. Unwind Tension Magnetic Power Brake Ω. In-feed By Inverter Control Ω. Use PLC Touch Screen
Ω. Optional: Vertical Tear Off Tape Ω. Unwind use EPC Control System Ω. Rewind By Inverter Control
Ω. Optional: Vertical Perforation

Model	KTGP-S300/400
Raw Material	PVC / PET / PET-G Shrink Film
Film Thickness	20-80 mic
Max. Unwind Diameter	500mm
Max. Unwind Width	600mm
Center Sealing Precision	±0.3mm
Max. Rewind Diameter	700mm
Max. Rewind Width	250mm
Seaming Speed	300m/min 400m/min
Machine Power	3.5kw
Machine Weight	About 1000kg
Machine Size (LWH)	3700 x 1500 x 1750mm
Power Support	3 Phase 220/380/440V 50/60HZ
