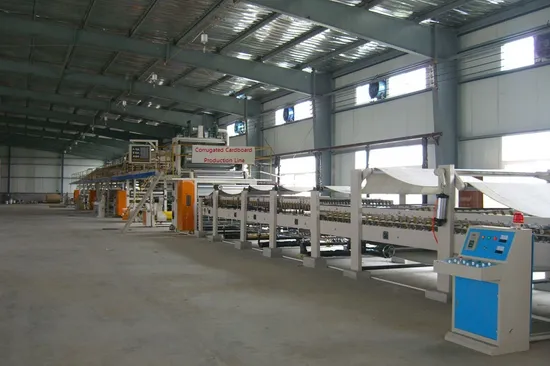

3/5/7 Layer Corrugated Cardboard Production Line

Product Description

3/5/7-layer Corrugated Cardboard Production Line 1) WJ-I/II/III 3/5/7-layer Corrugated Cardboard Production Line consists of the following machines, Electrical Shaftless Mill Roll Stand, Single Preheater, Fingerless type Single Facer, Overhead Conveyor Bridge, Duplex Preheater, Duplex Gluer, Double Facer, Lift-down Thin Blade Slitter Scorer, NC Cut-off, Right-angle Conveyor & Stacker, etc.
2) Kraft Paper Reel to be corrugated and glue by Corn Starch Gum, continuously produce, slit, crease & cut to 3/5-layer Corrugated Cardboard Sheet, and then conveyor, stack and output.
3) The production line has rational structure design, advanced producing flow, high efficiency, strong batch adjustability, easy operation, etc. good work conditions.
4) It is the ideal and perfect equipment for corrugated carton box factories.

Max Effective Width	1100~2200mm
Max Paper Roll Diameter	1500mm
Max Paper Roll Weight	3000kg
Corrugating Roller	Φ280~405mm, 48CrMo alloy steel, hardness HRC58°-60°
Min Slitting Width	150mm
Cutting Length	500~9999mm
Design Speed	100~200m/min
Heating Method	Steam Heating
Economic Working Speed	80~160m/min

Yush Machine Group Co., Ltd. is a professional enterprise specializing in R&D, production, sales and service of complete manufacturing equipments of corrugated cardboard, hard paperboard, carton, box, paper, etc. (all machines to make according to customer request available)Our main products consists of2/3/4-ply Hard Cardboard Production Line, 3/5/7-layer Corrugated Cardboard Production Line (Single Facer Corrugation Line, Flute Laminator, Shaftless Mill Roll Stand, Preheater, Single Facer, Overhead Bridge, Multiple Preheater, Multiple Gluer, Double Facer, NC Thin Blade Slitter Scorer, NC Rotary Cut-off, Conveyor Stacker, NC Duplex Cut-off, NC Double-layer Stacker, etc.)Carton Box Making Machine (Slitter Scorer, Slotter, Die-cutter, Flexo Printer Slotter Die-cutter Stacker, Folder Gluer, Stitcher, Strapper, etc.)Paper Box Making Machine (Cardboard Laminator, Film Laminator, Die-cutting and Creasing Machine, Folder Gluer, Cardboard Slotter, Box Corner Gluer, Sheet Feeding and Pasting Machine, etc.)Paper Products Related Machines (Automatic Paper Roll to Sheet Cutter, Program-control Paper Guillotine, Automatic Slitter Rewinder, Automatic Reel Flexo Printer, Paper Tube & Core Making Machine, Paper Corner Protector Making Machine, Paper Cup Making Machine, Paper Straw Making Machine, etc.)

---
