FRP GRP Gre Cable Pipe Winding Machines with Four Axis of Control

Product Description

i

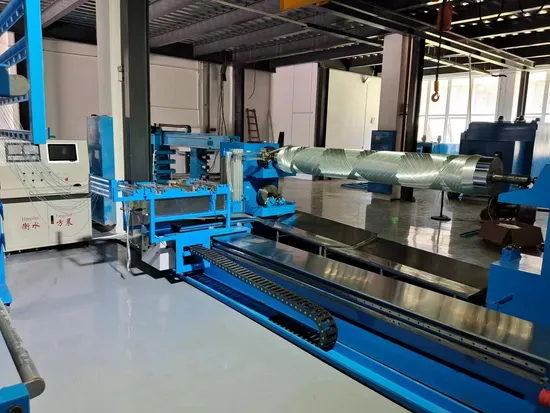

There are two cable pipe winding machines that we offer: FW-200 and FW-300. Customers could choose suitable one for the specific cable pipe production.
Product name
DN50-200 mm, 6000 mm definite length sand system FRP pipe winding production line. DN50-300 mm, 6000 mm definite length sand system FRP pipe winding production line. Production line component
The main component device of production line are liner making machine, winding machine, curing station, demoulding machine, trimming machine, resin mixing and resin supply automatic station.
Main para meters
Pipe diameter: DN50-200 mm, DN50-300 mm. Pipe length: ≤ 6000 mm. Rotating speed of main draft: 30-200 rpm/min. Winding car speed (max): 60 m/min. Yarn width: 150 mm. Winding angle range: 45° - 90°. Total installation capacity: 50 kW. Area of equipment: length 15000 mm, width 12000 mm. Control system: computer control system. FRP cable pipe features
Light weight but with high mechanical strength. Resistant to corrosion, abrasion, acid and alkali. Flame retardant and good heat, frost resistance. Good electric insulation performance. Flexible system has good adaptability. Best bright finish. Good construction and convenient installation. Wide application range. FRP cable pipe application
FRP cable pipes are widely used in the areas of urban power grid construction and renovation project, city municipal renovation project, the civil aviation airport construction, industrial park, residential construction, etc.
Multilayer multi-column cable pipe system are suitable for high demand situations:
City electric power and communication cable laid underground for protection The cables over the traffic lane or too buried pipe for protection when crossing traffic to be laid. It works as the protection tube when cable crosses bridge and the river, particularly the use of composite FRP cables when the cable needs to cross the bridge.

---
