Radial Warp Unwinding Creel for Wire Mesh Warping Machine

Product Description

Product Description
Creel is a platform which holds the supply packages like cone, cheese or spool in warping process.
Warping machine consists of several parts such as creel, open reed, head stock, warping drum etc. Feeding bobbins, cones, cheese or spools are fitted on metallic frames called as creels. These metallic frames consist of yarn tensioning devices which gives the uniform tension. But in latest machines instead of yarn tensioning devices they are provided with provided with centralized tension variation having automated control technique.
Scope of Application of the creel form:
Multiple forms available
1. According to the method of yarn introduction: internal yarn introduction
2, according to the form of yarn change: fixed type flip type car type
3. According to the number of yarn guide columns: two rows of yarns, four rows of yarns
4, according to the angle of the creel: rectangular V-shaped
5. According to the unwinding mode of the bobbin: axial unwinding, radial unwinding
The configuration of the creel
1. The configuration of the tensioner can be customized according to the yarn material and process.
2. According to the thickness and durability of the yarn [or according to customer requirements] custom infrared yarn breakage
Third, the creel ingot distance and head
Customized according to specific varieties and processes
Yarn Creel have following features example:
The creel is composed by N.512 spindles arranged on N.8 rows covering 64 spindles each one -N.32 on each side N.4 spans on N.16 panets.
-Vertical gauge:mm.270
-Horizontal gauge:mm.270
We can design any yarn creel as cutsomers'request and idea with different ends 300,500,750,800,1350,1540 ends............
Nomal creel, H CREEL, V CREEL, TABLE TURN YARN CREEL ARE ALL AVAILABLE.

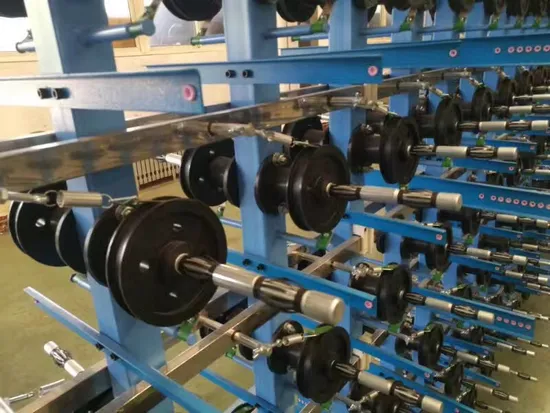

Detailed Photos

Product Parameters
Creel capacity determines the number of warping sections. Generally, the warping creel capacity is 100-2000 bobbins. It ensures to hold the supply packages in proper positions. Creeling includes sampling of yarn, passing through tensioner, thread guide, drop wire and on to the beam.
Only single type of creel cannot give the same beaming efficiency for different types of yarns. WETEX can supply many numbers of creels which are used for different purposes.

Types of creels:

V-creel

Rectangular creel

Magazine creel

Continuous chain creel

Automatic creel

Unrolling creel

Swivel frame creel

Creel Accessories:
Packaging & Shipping
Company Profile
WHO ARE WE?
Liaocheng Wetex Import & Export Co., Ltd, with over 20 years of experience, specializes in fully automatic warping and high-speed weaving machinery. We have our own factory, a research and development center, and partnerships with leading domestic manufacturers. Our high-quality products are recognized in over 20 countries across Asia, Europe, the Americas, Oceania, and Africa. Known for competitive pricing and precision, Wetex provides comprehensive solutions, including on-site installation and support in various languages. We are dedicated to innovation and customer satisfaction, making us a trusted name in the textile machinery industry.
Our Advantages
WHY US?

01 Industry experience
With rich experience in the industry, Wetex gives professional guidance and advice according to the needs of customers.
02 Customer Oriented
Wetex always puts customer's satisfaction as the first place, from professional sale suggestion, order tracking, to after sale one-site service, offering customer a life-cycle support.
03 Long-term cooperation
Wetex offer long warranty period, flexible payment methods, online and offline exclusive services, etc. are all to ensure long-term and stable cooperation
04 Own factory endorsement
