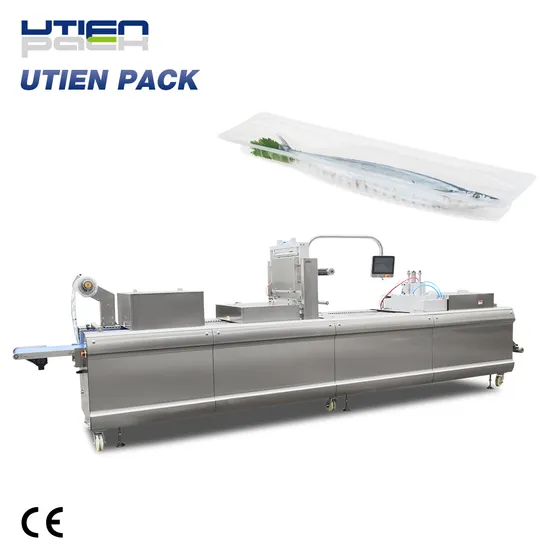

High Speed Fresh Fish Seafood Thermoforming Packaging Machine, Auto Thermoformer

Product Description

Product Description
Automatic Packaging Machine:
Currently, vacuum and gas flush packaging is the most popular for retail meat, seafood, fish, and poultry products. It offers an unparalleled combination of freshness and retail presentation, enabling processors and retailers to offer customers the highest quality product available.
Our machine is able to do the whole process from package forming, vacuum-sealing, cutting to final output.
With innovative technology, it's helpful to increase your capacity, lower your cost, and make your product more fresh and appealing.
Detailed Photos
Details
More application

Our Advantages
1) Long shelf life
Various packaging options are offered for the top freshness
2) Cost-effective
Each package is sealed using only the necessary amount of film,resulting 40 percent less material than other traditional wrapping packaging

3) Easy operation
By finger touch on PLC screen,you can easily control the whole machine

4) Reliable quality
Spare parts of international top brands, and experience workman

5) Flexible design
The package shape, column, packaging speed can all be customized
6) Packing speed
The package shape, column, packaging speed can all be customized

7) Thermoforming depth
Our max forming depth is 120mm with homogeneous deformation

Product Parameters

Machine details:

TOP SAFETY
Safety is our top concern in machine design. To ensure the security of workers and machines, many sensors are installed under the cover, inside the door and other removable parts to make sure the machine can auto-stop while the covers and doors are open.


HIGH AUTOMATION
The machine is fully automatic from package forming to final product output. And it can be fully controlled by 10'' PLC touch screen.
INDIVIDUAL DESIGN
We have a team of engineers to design every machine detail for customers' satisfaction. Also, we're capable to apply other third-party equipment to make a better auto packaging line.

Technical data for reference

Machine Parameters
Speed	5-7Cycles/min
Forming Depth	≤150mm
Film widths	≤520mm
Advance Length	≤500mm
Bottom Film
Material	Sealable PE/PA Multi-layer Co-extruded Plastic Film
Print	Unprinted Color Bottom Film or Transparent Film
Roll Diameter	500mm
Thickness	≥300um
Top Film
Material	Sealable PE/PA Multi-layer Co-extruded Plastic Film
Print	Pre-printed Top Film or Transparent Top Film
Roll Diameter	250mm at most
Thickness	≤200um
Components
Vacuum Pump	BUSCH(Germany)
Electrical Components	Scheneider(French)
Pneumatic Components	SMC(Japanese)
PLC Touch Screen & Servo Motor	DELTA(Taiwan)
Machine Parameters
Dimensions	6000mm*1300mm*1870mm
Weight	2000kg
Working Height	1000mm
Loading Area Length	1500mm(Customizable)

The parameter in this sheet is for reference only, some of the data may be different with different case.

After Sales Service
1. WARRANTY
1) The whole machine has 12 months warranty exclude wearable parts such as silicone plate, film, heating elements and so on.
2) Special overseas engineering service is not included in the warranty.
3) Other items or service require can be negotiated.
2. Information
1) We offer information about packages and machinery before making a special offer.
2) We have multiple after-sale services include online guiding, engineering service, install & tuning service, and so on.
3. Design
1) We can provide package design service at the request of the customer.
2) We can customize machine function, appearance, and special requests within a reasonable range.
3) We can make a certain design of the package under request.

FAQ
Q1: How long does it take to deliver the machine after the order & deposit?
A1: Usually it will take 90 working days to manufacture the machine and make it ready to deliver. At the first 30 days, the technical drawing will be made. The second 30 days start manufacturing the parts and ready to assemble. In the last 30 days, the machine will be assembled and tuned to make sure it is ready to deliver.

Q2: What do you need to make a specific offer for my product?
A2: To make a special offer we will need the dimension(s) of the package(s) you want to use on this machine. We also need the approximate production volume you need per day. If with other special request please also inform us before we make the project.

Q3: Can you offer oversea service?
A3: Yes, if request. But we suggest online problem solving at first. If the problem still shows we can arrange an engineer to go to your factory personally to solve the issue.
