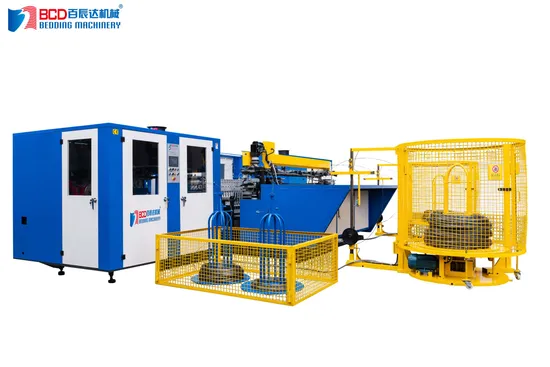

BYTJ-100 Auto Mattress Spring Unit Automatic Production Line

Product Description

Economical used mattress spring roll sheet making machine
Main application and performance:
Equipment for producing double cone spring bed nets. Without manual spring retraction and spring arrangement, the fed steel wire can be directly produced into a spring bed net.The equipment first feeds the steel wires into two different spring coiling machines, coils the steel wires into springs, and then alternately enters the conveying device. The spacing between the springs is automatically calculated and accurately positioned by PLC control. After that, the robot on the conveying device replaces manual hands to successively grasp the springs, and then automatically feeds them into the spring coiling machine for intelligent arrangement, achieving simultaneous spring coiling up and down, and automatically cutting the spring coiling wire, Both ends are knotted and automatically pushed to form a bed net.The spring conveying part has a simple and scientific structure, using 22 servo motors and network bus communication to give different action instructions to various components of the four machines, thereby achieving consistent work, accurate positioning, good stability, and effectively improving the speed of production bed net.

Spring Type	Bonell
Productivity	100sheets/8 Hours(1800mm*2000m)
Coiler Speed	140-160pcs/min
Max.Width	2m
Spring Caliber	Φ65mm-Φ72mm Φ73mm-Φ85mm Φ83mm-Φ95mm
Spring Wire Diameter	Φ1.9mm-Φ2.5mm(Customizable Φ2.6mm)
Assembling Wire Diameter	Φ1.3mm-Φ1.6mm
Spring Height	100mm-220mm(Less than100mm Customizable)
Convolutions	4-7 Turns
Work Power	380V 3Phase,50-60Hz,12KVA
Option	415V-480V,220V

Classification
Company Information

FAQ
Q. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance. Other payment terms can also be negotiated.
Q. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q. How about your delivery time?
A: Generally, it will take 20 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q. Do you test all your machines before delivery?
A: Yes, we have 100% test before delivery.
Q. Do you have some videos where we can see the line producing?
A: Yes, we can provide some videos for reference.
Q: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
