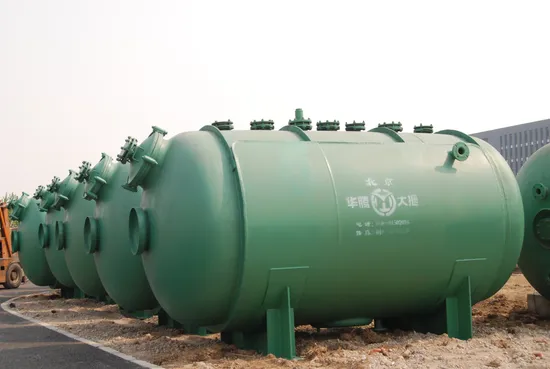

Glass-Lined Horizontal Storage Tank 4000L

US$1,000.00-50,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

4000L

Condition

New

Customized

Certification

ISO9001

Tank Marerial

Metal Tank

Type

Tank Container

Storage Objects

Solid, Liquid

Glass Thickness

0.8 mm to 2.0 mm

Storage Medium

Moncombustible/Nontoxic

Jacketed

with Cooling/Heating Jacket

Transport Package

Expert Export Transportantion

Specification

4000L

Trademark

Huateng Datang

Origin

China Beijing

HS Code

8419899090

Production Capacity

2000set/Year

Product Description

Product specification: 3000L-80000L
Product standard: GB25025-2010, GB/T 150-2011
Application: Widely used in chemical, petroleum, medicine, pesticide, food and other industries. Horizontal glass lined storage tank (storage tank) specifications: 3000L, 4000L, 5000L, 6300L, 8000L, 10000L, 12500L, 16000L, 20000L, 25000L, 30000L, 40000L, 50000L, 63000L, 80000L.

Nominal volume VN/L	Actua volume V/L	Nominal diameter D	Cylinder length L	Nominal diameter of pipe orifice DN							Liquid level gauge Nominal length quantity
Nominal volume VN/L	Actua volume V/L	Nominal diameter D	Cylinder length L	Spare port a	Spare port b1b2	Spare port C1C2	Outlet d	Liquid level gauge h1-4	Manhole m1	Manhole m2	Liquid level gauge Nominal length quantity
3000	3330	1450	1454	80	100	65	80	65	φ500		1000×1
4000	4453	1450	2135								1000×1
5000	5533	1600	2140nlet								1200×1
6300	6847	1750	2185								1400×1
8000	8909	1900	2430								1500×1
10000	11074	2000	2760	150			150				1600×1
12500	13555	2000	3550								1600×1
16000	17225	2200	3700		150				φ600		1800×1
20000	21705	2400	3900								2000×1
25000	27595	2800	3450								2100×1
30000	32505	3000	3500								2200×1
40000	43947	3200	4300	200			200			φ600	2500×1
50000	53848	3400	4700								2600×1
63000	66643	3600	5250								2600×2
80000	84645	3800	6100								2700×2

Nominal volume VN/L	Size
Nominal volume VN/L	L0	L1	L2	L3	L4	H0	H1	H2	H3	H4	A1	A2	K	B	E	F	G1
3000	2260	740	357			2112		1000		1089	1300	250	1080		600	115	290	320
4000	2940	1420	357			2118		1000		1095	1300	250	1080			120
5000	3020	1400	370			2270		1200		1170	1430	250	1180			120
6300	3140	1390	397			2422		1400		1250	1560	250	1300			130
8000	3460	1590	420			2575		1500		1325	1690	250	1420			130
10000	3860	1860	450			2680		1600		1376	1780	250	1490			150
12500	4650	2610	470			2680		1600		1376	1780	250	1490
16000	4900	2700	500			2910		1800		1475	1950	300	1680				300	390
20000	5200	2800	550			3110		2000		1580	2130	300	1890
25000	4950	2250	600			3523		2100		1780	2470	400	2240		700
30000	5100	2240	630			3275		2200		1882	2650	400	2430		700
40000	6000	2800	750		1120	3932		2500		1985	2820	400	2590		750	200
50000	6500	3100	800		1190	4135		2600		2085	3000	400	2740
63000	7150	3550	850	565	1260	4335	1128	2600	2600	2188	3200	400	2920	150
80000	8100	4210	945	565	1330	4548	1128	2700	2700	2290	3390	400	3110	150
