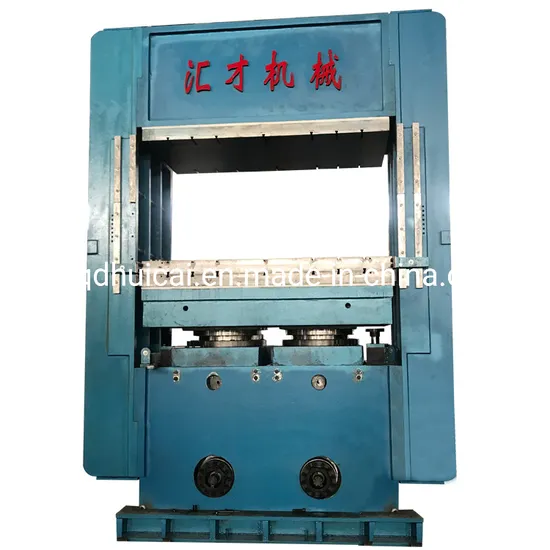

2019 Xlb-D (Y) Rubber Frame Type Flat Vulcanizer

Product Description

Specifications
frame flat vulcanizeraa
1 easy using 2 low investment
3 low power 4 low energy consumption
5 Accurate 6 Unique techno.
Features:
1.500t frame flat vulcanizing machine / frame flat vulcanizer/flat vulcanizing machine/frame type vulcanzing machine has beautiful color,advanced technology,reliable quality and low price.
2. The product are applicable to vulcanization moulding on rubber model
and nonmodel products.They are also widely used to form thermosetting plastic,foam,bakelite,resin,building material,grinding wheel, health tile and metalwork
under condition of hot pressing and cold pressing.
Technical Data:

Type	XLB-D(Y)600*800*1/2	XLB-D(Y)800*800*1/2	XLB-D(Y)1000*1000*1/2
Nominal molding power(MN)	1.20	1.00/1.60	1.00/1.60
Working layer number	2	1-2	1-2
Piston stroke(mm)	250-500	250-500	250-500
Main motor power(KW)	2.2	2.2	2.2
Plate clearance(mm)	250	125-500	125-500
Calefaction manner	Steam ecectricity	Steam ecectricity	Steam ecectricity
Configuration	Frame	Frame	Frame
Electric pipe heating power	4.2	4.8	8.0

We can also design and produce according to customer's requirement. If you are interested in our products or have any questions,
please contact us freely. We will try our best to meet your requirement in the first time .
