4 RS232\RS485\RS422 Interfaces Serial Device Server Modbus Gateway Modbus RTU Master Slave

Product Description

Accept Customization/QC Pass/ Fast Shipping

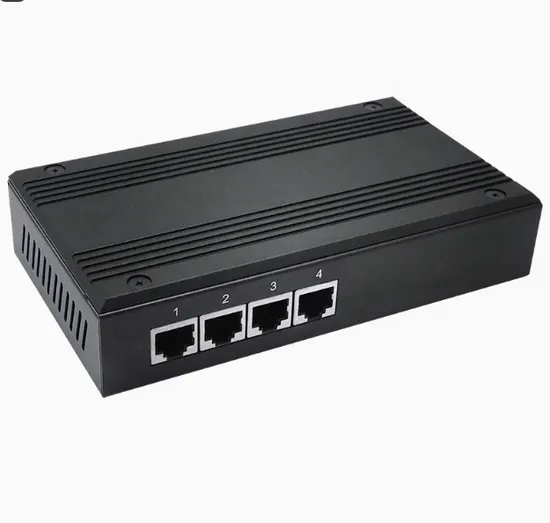

4 port RS232\RS485\RS422 Interfaces Serial Device Server Modbus Gateway Modbus RTU Master Slave
CT-6804-GW provides Modbus gateway functionality, which can convert data from multiple cascaded Modbus RTU Slaves into Modbus TCP messages and supports access control by multiple Modbus TCP Masters. It can also convert data from multiple Modbus TCP Slaves into Modbus RTU messages and supports access control by multiple Modbus RTU Masters. The product adopts a metal shell and is designed with multiple installation methods, suitable for industrial control field
applications.
Wide power supply input (12~48VDC), suitable for different on-site power supply methods.
Up to 4 RS232\RS485\RS422 interfaces are available, meeting the demands of multi-serial port applications.
Supports a wide range of baud rates from 300-921600bps, suitable for applications between different devices.
Supports multiple operating modes: Modbus RTU Master/Slave, Modbus TCP Master/Slave.
Supports firmware upgrade via Web, making it convenient for special applications in different situations.

Processor	32bit 400MHZ
Memory	128M
Ethernet interface	10/100M (embedded with 1.5KV electromagnetic isolation) adaptive MDI/MDI-X Ethernet interface, RJ45 interface
Serial port	RS-232, RS-485, RS-422
Port	4×RJ45
Indicator light	Power indicator light PWR, operation indicator light RUN
Power interface	DC-005 DC jack or 3Pin 5.08 terminal power supply mode, with built-in reverse connection protection to avoid damaging the equipment due to positive and negative polarity reversal
Power supply range	DC12~48V
Function button	One factory reset button RESET
Maximum power consumption	2W
Casing	Metal casing, protection level IP30
Operating environment	Storage temperature: -40~85°C
Operating temperature	-40~85°C
Relative humidity	5%~95% (non-condensing)
Dimensions L×W×H	161mm x 91mm x 37mm (excluding mounting components)
Net weight	350g

---
