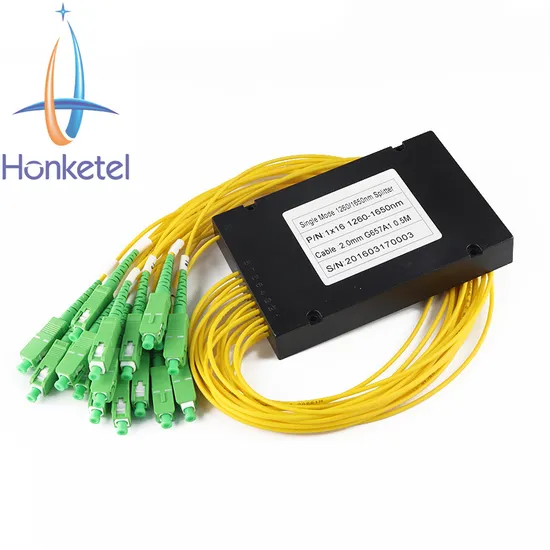

1X16 Fiber Optic Splitter ABS Box Sc/Upc Sc/APC Fiber Optic PLC Splitter

Product Description

PLC Splitter Description :Planar waveguide light optical distributor (PLC Splitter), is a kind of planar waveguide integrated optical device, it can be 1260nm ~ 1650nm such a wide range of wavelengths of light power reservation in realization, the distribution of wavelength range covers EPON technology used 1310nm, 1490nm and 1550nm three wavelengths. Especially suitable for EPON Ethernet passive optical network access technology FTTP fiber network system, broadband passive optical optical distributor (POS) use.
Including 1x2,1x4,1x8,1x16,1x32,1x64, and 2x2,2X4,2X8,2X16,2X32,2X64 type.
Features:Low Insertion loss and Low PDL
Uniform power splitting
High reliability
Excellent environmental stability
Compact size and various package
Applications:FTTx Systems
Digital, hybrid and AM-Video systems
LAN,WAN and Metro Networks
CATV systems
Other applications in fiber optic systems
Specifications:

Parameter/Type	Nx2(N=1or2)	Nx4(N=1or2)	Nx8(N=1or2)	Nx16(N=1or2)	Nx32(N=1or2)	Nx64(N=1or2)
Fiber	9/125 um SMF-28e or customer appoint
Operating Wavelength(nm)	1260~1650(nm)
Insertion Loss	≤3.9dB	≤7.1dB	≤10.3dB	≤13.3dB	≤16.3dB	≤19.8dB
Loss Uniformity(dB)	≤0.6dB	≤0.6dB	≤0.8dB	≤1.2dB	≤1.5dB	≤2.0dB
Polariation Dependent Loss	≤0.15dB	≤0.15dB	≤0.2dB	≤0.2dB	≤0.2dB	≤0.3dB
Return Loss	UPC≥50dB APC≥60dB
Directivity	≥55dB
Working Temperature(ºC)	-40°C to +85°C
