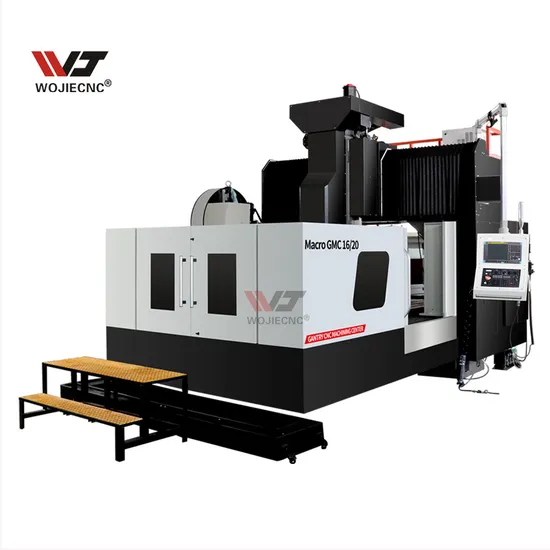

Wojie Heavy Duty Gmc2016 Gmb2016 CNC Milling Machine Siemens Fanuk GSK System Double Column Gantry Type 3 4 Axis 5 Axis CNC Machining Center for Metal

Product Description

Product Description
VMC series machines are widely used in many industries, including but not limited to the following fields:
1. Automobile manufacturing industry: Machining centers are widely used in the processing of automobile parts, such as engine parts, gearbox parts, chassis parts, etc.
2. Aerospace industry: The aerospace field has very high requirements for the precision and quality of parts, and machining centers can meet the high-precision machining needs of complex parts.
3. Electronic communication industry: Machining centers can be used to process various precision electronic components, communication equipment parts, etc.
4. Mold manufacturing industry: Machining centers can be used to manufacture various types of molds such as plastic molds, die-casting molds, stamping molds, etc.
5. General machinery manufacturing industry: Machining centers can meet the processing needs of various mechanical parts.
Product Parameters

Model	GMB2016
X axis (transverse movement of worktable)	2000mm
Y axis (saddle longitudinal movement)	1600mm
Z axis (ram vertical lifting)	1000mm
Distance from spindle end face to worktable (when BT40)	100-800mm
Distance from spindle end face to worktable (at BT50)	65-765mm
Gantry width	1650mm
X-axis rapid movement	20m/min
Y axis rapid movement	20m/min
Z-axis rapid movement	20m/min
cutting feed	1-10m/min
Three-axis screw (C3 level grinding)	5012/5012/5012
Three-axis guide rail	45 roller /45roller/ hard rail
Three-axis servo motor torque (new generation)	28/28/28B N.m
Three-axis servo motor torque (FANUC)	βiS30/30/30B
Workbench area	2200×1300mm
weight capacity	3000Kg
T-slot	7×22×165mm
Standard configuration	Belt type BT40-150
Rotating speed	8000 rpm
Spindle taper hole	BT40
Positioning accuracy (JIS standard)	±0.005/300mm
Repeat positioning accuracy (JIS standard)	±0.005mm
weight	22000Kg
Dimensions	5600×3300×2900mm

Detailed Photos

Control system Standard configuration: GSK Optional configuration: Siemens/ Fanuc/ Syntec/ Mitsubisin	Automatic tool changer Standard configuration: 24-tool hat-type tool magazine
Spindle Taiwanese brand high-quality spindle, VOLIS/OKADA/ROYAL/AIMACH, etc. Standard configuration: 8000 rpm Optional configuration: 10000/12000 rpm	Workbench High-frequency quenching for better rigidity
3-axis linear guide Using high-precision Taiwanese or Japanese brands, HIWIN/PMI/THK, etc.	Lead screw 3-axis lead screw, using high-precision Taiwanese or Japanese brands, HIWIN/PMI/THK, etc.
	Pneumatic system With electronic display, better stability, when changing tools on the equipment and spindle, the air pressure will be very stable and there will be no tool jamming
Lubrication system The centralized lubrication system can be used in a timely, quantitative, accurate, efficient, convenient and reliable manner, and is conductive to increasing the service life of the machine tool.	Pneumatic system With electronic display, better stability, when changing tools on the equipment and spindle, the air pressure will be very stable and there will be no tool jamming.
Electrical part Standard configuration: DELIX Optional configuration: Siemens	Heat dissipation device Standard configuration: Electrical cabinet heat exchanger Optional configuration: Electrical cabinet air conditioner

Optional Accessories

Company Profile
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
More than 60,000m² of the factory with more than 150 workers. Strictly QC control with more than 24 steps testing processes 30+ years CNC machine manufacture experience factory 24 hours online service at any time Trade with customers in more than 150 countries around the word. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect. Support ODM OEM. Warranty time is 24 months

Certifications
FAQ
1. What are the payment terms?
A: T/T, 30% down payment when ordering, 70% balance before shipment; irrevocable L/C at sight.
After receiving the advance payment, we will start production. After the machine is ready, we will take pictures and videos for you to inspect the machine. After paying the balance, we will send the machine to the designated location according to your instructions.
2. What does your company mainly produce?
A: Our company is a professional machine tool manufacturer with many years of experience. The company mainly produces CNC milling machines, CNC lathes for machining centers, ordinary milling machines, ordinary lathes, hydraulic presses, etc.
3. When is the delivery time?
A: If the machine you ordered is a standard machine, we can prepare the machine within 15 days. If it is some special machines, the delivery time is about 30 days. Some machine models will be in stock, please consult the salesperson for details.
4. What are your trade terms?
A: FOB, CFR, CIF, DDP, DAP, FCA, etc.
5. What is your minimum order quantity and warranty period?
A: The minimum order quantity is 1 set, and the warranty period is 2 years. But we will provide lifetime service for the machine.
6. What is the packaging of the machine?
A: The machine is placed on a metal pallet, covered with a moisture-proof coat inside, and wrapped with plywood all around.

---
