270 Ton Plastic Restaurant Dining Room Chair Stackable Windmill Stool Injection Making Molding Machine

Product Description

Automatic Plastic Fork Knife Spoon Pallet Making Injection Molding Machine
Product Parameters

SE-270T IV Plastic Injection Molding Machine Information
Item		Unit		A		B		C
Screw diameter		mm		55		60		65
Theoretical shot volume		cm³		713		848		995
Shot weight (PS)		g		649		772		906
Shot weight (PS)		oz		22.9		27.2		32
Length/Diameter ratio		L/D		21.8		20		18.5
Injection pressure		Bar		2114		1777		1514
Injection rate		cm³/sec		243		288		338
Max.screw speed		rpm		220
Clamping force		KN		2700
Max.daylight		mm		885*835
Open stroke		mm		560
Space Between Tie-bars		mm		620*570
Min mould dimension		mm		270
Mould thickness range		mm		620
Ejector force		KN		80
Ejector stroke		mm		150
No.of ejector pins		unit		13
Max.motor power		KW		30
System pressure		MPa		175
Heater input power		KW		22
Oil filling capacity		L		300
Machine size		M		6.0*1.5*2.3
Net weight		KG		9000

SE/IV series machine advantages
Distributed architecture (n-tier);
TCP / lP efficient network connection,Internet remote control;
Synchronous cluster status browsing and parameter central control;Real-time heating curve to monitor barrel temperature changes.
Temperature and molding parameter statistics to assist in quality management.Expansion of the die storage space for mutual replication.
Scalability. providing interface with ERP.
Operator password rights management, recording of modification logs.Ease of operation and support for multiple languages.

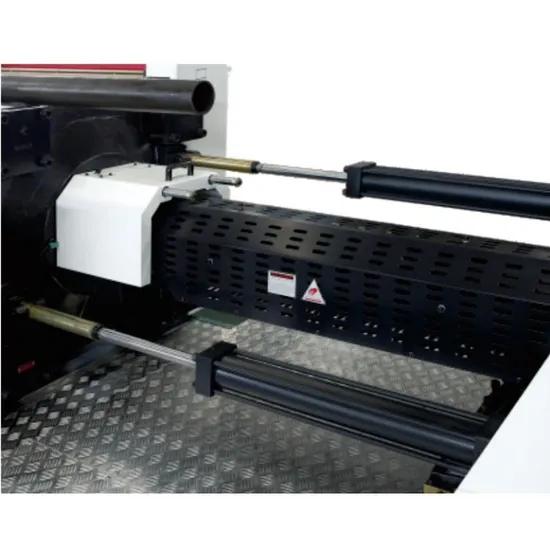

Detailed Photos
