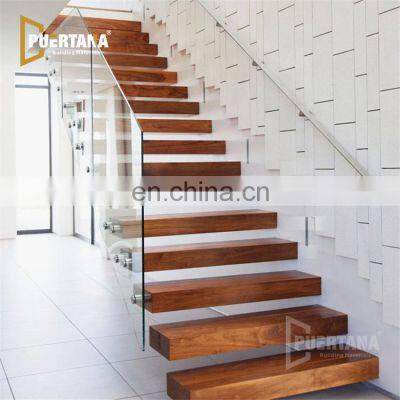

Invisible Stringer Wooden Tread Floating Cantilevered Staircase Straight Floating Stairs With Glass Railing Designs

Product Description

Product Description
How To Design a Cantilevered StaircaseStaircases are a lot of fun. That is, even though the design process is strictly regulated by the building code, it can be the perfect opportunity to flex your creative muscles. But how exactly do you design a cantilevered staircase? How do the stairs stay in place? And what do you need to take into consideration during the design phase?Product DescriptionSizeFloor heightCustomized as your job siteWidth700 - 1500mmMaterialTreadLaminated glass /Tempered glass /Solid wood /Marble /Stainless steel /Wrought ironRailingGlass Railing/Stainless steel cable railing/Stainless steel rod railing/wrought iron railingComponent & SizeTread thickness30 to 100mm solid wood tread10+1.52+10+1.52+10mm or 12+1.52+12mm tempered laminated glass treadHandraildia=50.8mm or square=50*50mmBalusterdia=50.8mm or 42.4mmGlass12mm thickFinishStainless steelMirror / satinCarbon steelHot dip galvanizing / powder coating / paintingAluminumPowder coating / galvanized / oxidizeSolid woodPaintingGlassClear / frosted/ tintedMOQ1 SetDelivery TimeAbout 30 daysFIGURE 1 – Cantilevered Staircase DetailsWe’ll tackle these questions by first having a look at the relevant building regulations, and then moving onto understanding the basic physics behind designing and building a cantilevered staircase. This is where it gets a bit more technical – but don’t worry– we won’t get carried away with complex equations. We’ll mainly focus on finding out maximum displacement and the basic stresses under expected loading conditions, i.e. under every day use.FIGURE 2 – Measuring Floor-to-Floor DimensionTo work out the number of risers, we need to pick a number that falls within the specified range (150 – 220mm) and divide the floor-to-floor dimension with that number. Remember that we need a whole number here, so we’ll round it up to the nearest number if we end up with decimals.We can’t have half risers on our staircase, right? So, in this case, we’ll divide 2850mm by 190mm, resulting in 15. This means that our staircase will have 15 steps, each with a rise of 190mm.FIGURE 3 – Measuring Floor-to-Floor DimensionNow that we have the main dimensions worked out, we can start designing our staircase. In Fig. 4 below we can see the full staircase is made up of two sections – top and bottom flight assembly. So although at a first glance the staircase looks like it’s made from solid timber treads, there’s actually a steel structure underneath it all.STRINGERThe stringer is the backbone of the steel structure as it supports the cantilevered treads and acts as a fixing plate for the whole staircase. Therefore it needs to be strong enough to withstand the stresses and rotational forces that are introduced while the stairs are being used.This is why there are four fixing points at the centreline of each tread. By using multiple fixings per tread, the forces are shared evenly which keeps the stringer nice and rigid.FIGURE 5 – Cantilevered Staircase Fixing DetailThe fixing detail in Fig.5 above shows us how the end of the staircase is fixed to the wall. This is what the word cantilever means – fixed at one end only. You may have heard the term floating stairs thrown around, which is another term to describe cantilevered stairs.This ‘floating’ effect is achieved by hiding the fixings and support structure from sight, making it appear as if the stairs are floating. Here the stringer and fixings are hidden behind a plasterboard finish which is offset from the concrete wall.There are four lengths of M16 studding resin anchored at the centreline of each tread. We’ll see why we need this many fixings in the structural analysis a bit later, but first let’s familiarise ourselves on how resin anchoring actually works. STRAIGHT STAIRCASEModular open staircases custom designed and built with stainless or powder-coated stainless steel, wood, and glass.Company Profile Founded in 2010,Foshan Puertana building materials Co.,Ltd. is a modernized enterprise that specializes in high-end aluminum alloy doors&windows,solid interior frosted glass doors,sunrooms and shower rooms etc, integrating R&D,manufacturing,sales and service.It covers 30,000 square meters, and has over 500 staffs. We are One Stop Building Materials Supplier , we mainly working with the Housing Builder, Developer, Contractor and individul houses , most of our customers from North America , Europe , Australia , and our products can meet the local Building Code.Our AdvantagesPre-sales service• 24 Hours Online Consultant. • Sample Support. • Free Pick-up At Hotel / Airport To Visit Factory. • Quick & Professional Response To Quotation Request And Technical Question.Production period service• Shop Drawing Submitted To Double Check Details. • Quality Inspection Report Submitted. • Logistics Service Support. • Installation Solution Provided.After-sales service• Providing The Installation Guide And Solution. • 10 Years Quality Guarantee. • Any Quality Problem Replace Freely.CertificationsProject GalleryProduct packagingFAQQ: What's your MOQ?A: Our MOQ for aluminum products are 10m2, for wood doors is 10 sets. Q: What's your payment term?A: T/T 30% deposit, full balance against delivery Q: Can you help with delivery?A: Yes, we can do FOB, CFR, CIF, DDU. Q: What's your period of production time?A: Normally it's 25-30 days. It's negotiable. Q: Will you check the products' quality before delivery?A: Yes, we have QC department so we can make products 100% good for you. Q: What color can you do for the products?A: We have standard colors for every product. But we can customize it for you.
