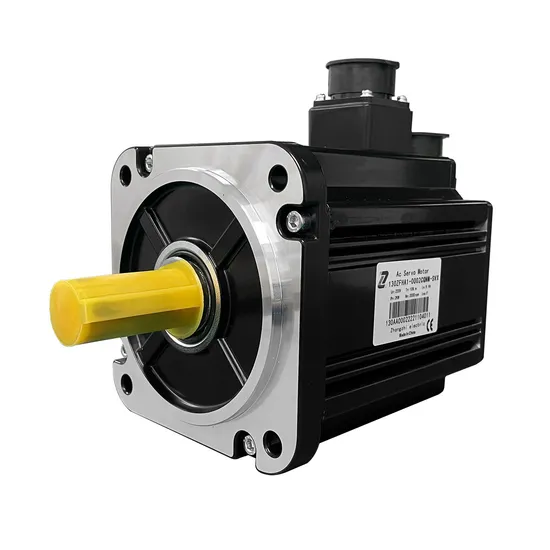

2kw Servo Motor Without Brake Speed Control Electric Delta Motor

Product Description

Product Description
1. Small size, saving installation spac
2. Strong overload capacity and high operating efficiency
3. Small speed fluctuation and smooth operation
4. Low temperature rise, low noise, high applicability
5. The energy saving is raised to level 1
6. The protection level is increased to IP67
Product Specification
Product Parameters

Model type		130ZFHA1-0002CQNM
Flange size(mm)		130
Rated voltage(V)		AC220
Rated power(W)		2000
Rated torque(N.m)		9.55
Max torque(N.m)		23.88
Rated current(Arms)		9.9
Max current(Arms)		24.75
Rated speed(r/min)		2000
Max speed(r/min)		3000
Torque coefficient(N.m/A)		0.96
Rated power change rate (without brake)(KW/S)		75.4
Rated power change rate (with brake)(KW/S)		68.6
Mechanical time constant (without brake)(ms)		1.24
Mechanical time constant (with brake)(ms)		1.37
Electrical time constant(ms)		13.9
Motor rotor Inertia (without brake)(x10-4kg*m2)		12.3
Motor rotor Inertia (with brake)(x10-4kg*m2)		13.5
Line resistance(Ω)		0.35
Inductance Ld(mH)		3.5
Inductance Lq(mH)		3.5
Protection grade		IP65/IP67(Optional)(Except the shaft penetration part)
Brake performance parameters	Rated voltage(V)	DC24±10%
	Rated power(W)	23
	Statc friction torque(N.m)	≥ 16
	Attract time(ms)	< 80
	Release time(ms)	< 40
	Release voltage(V)	>0.5
	Running noise(dB)	<65

Product Drawing
Detailed Photos
Packaging & Shipping
Company Profile
Chnchi Nanjing Electric Co.Ltd was established in 2007,covers an area of about 42000 squaremeters, is located in Nanjing where is known as the ancient Chinese capital. The company focuses on industrial electrical equipment of transmission control and energy saving technology, newenergy generation equipment and control technology. The company is private high-tech enter-prises, and its business includes R & D, production,sales and service. We have industrial automation control technology with independent intellectual property rights, provide customers with personalized solutions as quickly as possible, and achieve the common growth of corporate value and customer value as much as possible.
