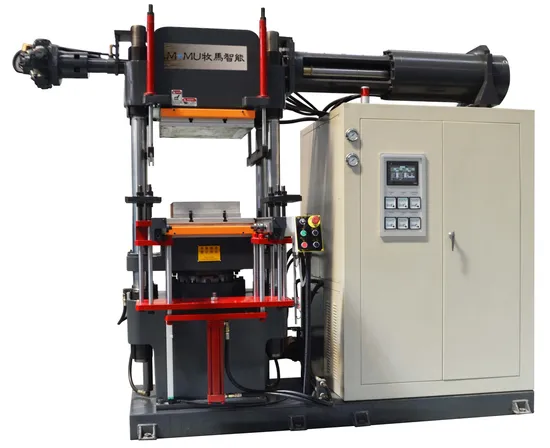

Solid Silicone Injection Molding Machine for Energy Industry, 38kv Arrester, 10kv Transformer.

Product Description

Solid Silicone Injection Molding Machine For Energy Industry,38kv Arrester,10KV transformer . Features Introduction:
1, can be installed in different types of mold, especially suitable for molding complex structures and diverse products;
2, countertops big, big hot plate area, can ensure better mold heated hot plate temperature uniformity;
3, hot plate and mold with the launch of the machine in front, make molds and hot plate after you take the products without
temperature, mold temperature again reduce the time;
4, the outflow channel design, runner only in the uppermost surface of the mold design, the machine comes with half of the mold
flow channel for customers to save the cost of a layer of mold;
5, the hydraulic motor torque, can guarantee fast high hardness rubber feed, reasonable screw design, suitable for different
rubber;
6, injection speed, injection pressure is high, can reach 1800kg / f-3000kg / f, the finished product is high quality, flash and
even less, for a variety of sophisticated finished products;
7, rapid clamping and rapid tooling, improve production efficiency;
8, the machine fully functional, optional hanging down power module, the former top agency, under shoot, thimble, left and right
side of the mold, saving variable pump, hydraulic servo system, electric eye safety, international brands and touchscreen
controllers.
Application:
Multilateral, polygonal and other complex products, especially sports supplies, automotive supplies, electronic
supplies, electrical insulators and other industries.

Type	TFS-210	TFS-250	TFS-330	TFS-400
Clamping force(Ton)	210	250	330	400
Cylinder diameter(mm)	360	400	450	500
Heating plate size(mm)	550*550	600*600	650*650	750*750

the machine have different open mold way : as 2RT/3RT/4RT OR using Upper and lower lifter part , suiting for different kinds of mold.
Casting using the Nodular Cast iron , longer using life
Electrical element using good quality parts , Testing Four column force must be the same , then prootect the machine using life Exhibition Asia Rubber Expo Exhibition Ruuber exhibtion ExhibitionPACKAGE LOADING and SHIPPING
OUR factory

---
