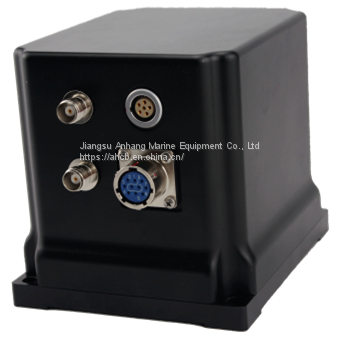

INS600 Series Fiber Optic GNSS/INS Integrated Inertial Navigation System of Type A, Type B, Type C, and Type D

Product Details

Product Description

Product Description
Technical Features:
· Ultra-small size, 145 mm × 121.5 mm × 125mm, lightweight (3kg), low power (20W)
· Wide measurement range, ±1000 deg /s, high reliability, long service life
Typical Application:
· Tactical missile guidance, antenna system stabilization
· Attitude/Azimuth Reference System, Multi-beam Attitude Sensing
· Railway track inspection vehicles, navigation and control of drones and unmanned ships
· Space stable platform, intelligent navigation, and control of mine road header and coal excavator
Performance Indicators:

	Parameter Name	Unit	INS600A	INS600B	INS600C	INS600D
Work Performance	GPS effective 4m baseline
	Automatic North Seeking	deg	≤0.3*Secant Latitude	≤0.4*Secant Latitude	≤0.5*Secant Latitude	≤1.0*Secant Latitude
	Azimuth accuracy	deg	≤0.05	≤0.05	≤0.05	≤0.05
	Attitude Angle Accuracy	deg	≤0.03	≤0.03	≤0.05	≤0.05
	Speed Accuracy	m/s	≤0.03
	Position Accuracy	m	≤2m/RTK 2cm
	GPS Failure
	Azimuth Hold Accuracy	deg	≤0.06，1h	≤0.08，1h	≤0.1，1h	≤0.2，1h
	Attitude Angle Hold Accuracy	deg	≤0.05，1h	≤0.05，1h	≤0.08，1h	≤0.08，1h
	Position Accuracy	km	≤8，0.5h	≤10，0.5h	≤12，0.5h	≤15，0.5h
			≤0.03,5min	≤0.04,5min	≤0.05,5min	≤0.06,5min
	System Measurement Range
	Azimuth Measurement Range	deg	±180
	Attitude Measurement Range	deg	±90
1 Environmental Parameters
1.1	Operating Temperature	℃	-40～+65
1.2	Storage Temperature	℃	-45～+70
1.3	Vibration	Hz, g2/Hz	20～500,0.06
1.4	Impact Resistance	g, ms	30,11
2 Electrical Parameters
2.1	Input Voltage	Vdc	+9～+36
2.2	Power	W	20
2.3	Data Output Format	/	RS-422
2.4	Data Refresh Rate	Hz	100
3 Physical Parameters
3.1	Size	mm	≤145×121.5×125
3.2	Weight	kg	3
3.3	Connector	/	Y11P-1210ZK10

---
