| Negotiable | 1 Set (MOQ) |
| Feature |

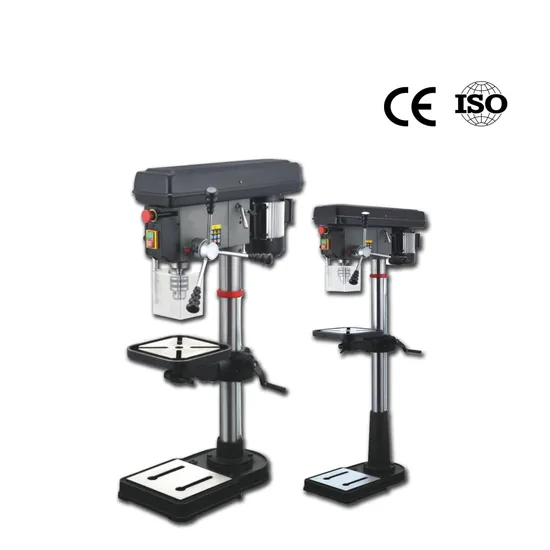

| 16mm (5/8'') max. chuck capacity. 330mm swing. 12 spindle speeds. Optional chuck guard and micro switch for CE requirement. |
| Model | DP33016B-PRO |
| Drill capacity | 16mm |
| Chuck capacity | 16mm |
| Swing | 330mm |
| Distance from spindle to column | 165mm |
| Spindle taper | MT2 |
| Speed (50Hz) | 12 (180-2740rpm) |
| Spindle travel | 80mm |
| Column diameter | 73mm |
| Rack & pinion | Yes |
| Max. distance from spindle to table | 470mm |
| Max. distance from spindle to base | 670mm |
| Base size | 520x310mm |
| Base material | Cast iron |
| Table size | 270x270mm |
| Table tilt | Yes -45/+45° |
| Table material | Cast iron |
| Motor (w)/S1 | 600W |
| Height | 1050mm |
| N.W./G.W. | 59/62kg |
| Packing size | 895x490x290mm |
| Quantity for 20GP | 224pcs |
| Standard Accessories | Optional Accessories |
| Drill chuck | Copper motor |
| Wrench set | Chuck guard |
| Aluminium motor | Emergency stop |
| Keyless drill chuck | |
| Vice |
