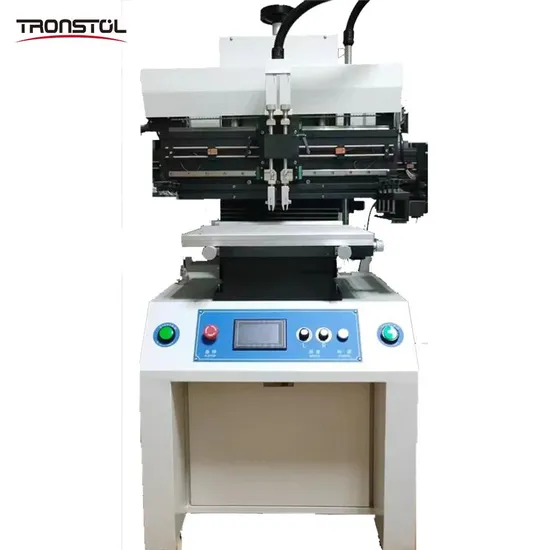

Semi Automatic SMT PCB Solder Paste Printing Machine Soldering Printer

Product Description

Product Description Semi Automatic SMT PCB Solder Paste Printing Machine Soldering Printer
Features:
Features:
1.PC control ,touch screen display and menu operation interface
2.Floating scraper.similar to automatic printer, the scraper can be floated freely up and down and can be adjusted automatically to level with the steel grid.
3.The pressure of the scraper is adjustable .The pressure of the scraper on the steel grid is adjustable according to the length of the scraper.
4.The process of the stell gird removing from the PCB can be adjustable from 0 to 5seconds
5.Use both of your hands to press the button to operate so that the safety and reliability are ensured.
6.The stopping time of the scraper at top left or bottom left, and top right of bottom right,as well as the overall stopping time of the steel gird at top or bottom can be independently set in the touch screen menu.
7.The PCB can be localized and fastened by base hole , base side ,both base hole and base side ,and template localization.
8.Time can be displayed on the touch screen and the count of the printing time can be recorded .
9.The scraper speed at left and right is adjustable and can be stopped in emergency.
Specification

Specification
Model	YS350
PCB size	Max:400*240mm
Printing area	500*320mm
PCB fixed system	Pin positioning
Frame size	L(550-650)*W(370-470)
Adjusting for table	front/rear±10mm,left/right±10mm
Printing Accuracy	±0.2mm
Repeating Accuracy	±0.2mm
PCB thickness	0.2-2.0mm
Power supply	AC220V 50HZ
Dimension	L800*W700*H1700mm
Packing size	1050*900*1850mm
Net weight	230kg
Gross weight	280KG
