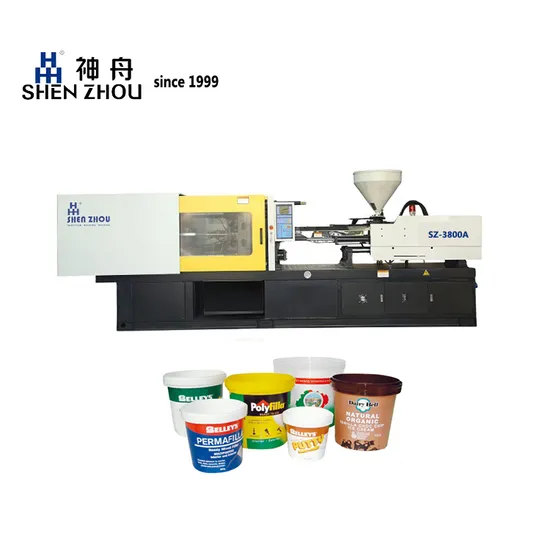

CE ISO Certified High Quality Plastic Bucket Making/Manufacturing Injection Mold Molding/Moulding Machines

Product Description

Product Details
Clamping Unit
New type 5-point toggle device of stable movement curve,gentle shock. Superior mould platen to ensure no out of shape if
high-pressure clamping.
Hard chrome plated high tensile strength tie bars made of superior alloy.
Wear-resistant guide for moving platen.
Transducer control clamping stroke.
Many step control for speed and pressure of clamping and opening.
Eiection device offer dwell,single,more, vibration function.
Low pressure mould protection function.
Hydraulic mould height adjustment with roungh and fine operation.
Mechanical and electrical dual safety interlock.
Automatic centralized lubrication system with far pressure detector.
Injection Unit
Nitrided screw and barrel with long service life. Smelted screw with big L/D ratio with good plasticizing and color-fixing.
Double injection cylinder of compact construction and good equilibrant.
Transducer control injection stroke.
The speed of low speed and large torque hydraulic motor can be adjusted.
Screw back pressure control and nozzle anti-leakage control movable hopper for easy remove material.
Injection-catriage can be used for slacking,re-feedingor fixed-feeding.
Speed and pressure of injecting and holding controlled by time or position.
Equipped with reverse device to be easily removed and cleaned.
Hydraulic System
Proportional pressure and flow control with fine adjustment and precision. Know-how manifold design,compact,reasonable and fast
respond.
Imported world famous hydraulic valves.
Imported world famous hydraulic sealing rings.
Imported technology hydraulic hose and fittings.
Low noise hydraulic system.
Precision oil filter and oil cooler.
Control System
Adopt PLC control system.
High reliability and strong anti-interference ability.
Complete functions and strong applicability.
User-friendly Design.It is easy to operate and is well received by engineering and technical personnel.
PLC replaces wiring logic with storage logic, which greatly shortens the design and construction cycle of the control system. It is easy to maintain, easy to transform, and suitable for many kinds of production occasions.
Why Choose Us
1. 20 years of professional injection molding machine and mold manufacturer, excellent quality, honest management 2. Continuous technological innovation, optimized product structure, longer service life
3. Lifetime maintenance of the product, 24 hours after-sales service
4. The main components are all world-renowned brands
5. Dedicated quality control department
6. Ex-factory price
Service Capabilities ONE-STOP Injection Molding Engineering Solution 1.Supporting service capabilities.From injection molding machines to molds, auxiliary machines, and plastic products, we can achieve turnkey projects; we can help you complete the plant design and quickly build a complete production line.
2.Quick response capability.We have after-sales service centers and technical representatives in many places at home and abroad. If your products have any problems, we can solve them in time.
3.Comprehensive service capabilities.Customer first! We strictly implement this principle in every aspect of the transaction. For example, during machine R&D and design, the layout of the operating system and circuit is optimized to facilitate the subsequent operation and maintenance of customers. We have always been thinking about problems from the perspective of customers and providing you with the most humane service!
Place an order! and You Will Get:A service team with 20 years of rich experience,Auxiliary machines or accessories are free!
etc......
Product Paramenters

SZ-3800A INJECTION UNIT
ITEM	UNIT	VALUE
SCREW DIAMETER	mm	65	70	75
SCREW L/D RATIO	L/D	22.6	21	19.6
Theoretical Shot Volume	cm^3	1061	1231	1413
SHOW WEIGHT(PS)	g	966	1120	1286
INJECTION PRESSURE	Mpa	203	175	152
THEORETICAL INJECTION RATE(PS)	g/s	308	357	410
PLASTICISING CAPACITY	g/s	50.6	60.5	71.5
SCREW TORQUE	N.m	2860
MAX.SCREW ROTATE SPEED	r/min	150
INJECTION STROKE	mm	320
SZ-3800A CLAMPING UNIT
ITEM	UNIT		VALUE
MAX.CLAMPING FORCE	KN		3800
MAX.OPENING STROKE	mm		680
SPACE BETWEEN TIE BARS	mm		680*680
MOULD HEIGHT	mm		250-710
MAX.DAYLIGHT	mm		1390
EJECTOR FORCE	KN		90.7
EJECTOR STROKE	mm		170
EJECTOR QUANTITY			13
SZ-3800A OTHER
ITEM	UNIT		VALUE
PUMP MOTOR POWER	kw		37
PUMP PRESSURE	Mpa		16
HEATING POWER	kw		25
HEATING ZONE			5
SIZE	m		6.8*2.0*2.3
NET WEIGHT	t		15
OIL TANK CAPACITY	L		820
INTERNATIONAL DESIGNATION			3800-2510

Company Profile
SHENZHOU-Since 1999 We specialize in manufacturing and exporting injection molding machines, with an injection weight of 60-10000 grams and a clamping force of 95-1600 tons. Using more than 20 years of injection molding machine knowledge and experience, implementing the most modern design and precision manufacturing, using imported famous and high-quality hydraulic, electrical, and sealing parts, we have manufactured the SZ series of fully automatic computerized injection molding machines and their downstream equipment. They are characterized by high quality, high reliability, stable operation and attractive price/performance ratio.
Our machines can meet customer needs and profits. Compared with machines in other factories, our machine has larger injection weight, larger opening stroke and larger distance between tie rods. With high-quality and innovative products, excellent productivity, efficient management, perfect technical solutions and services, our machines are sold to more than 20 domestic provinces and cities, and exported to the Middle East, Southeast Asia, Russia, Central Asia, Africa, America, Europe and many more. All our customers have given high praise to our machines and services.
Customer story
Old Friend.
The client's name is Obed and he is from Tanzania. He is our old friend. We have been working with him for more than 15 years and we have established a deep friendship. In the beginning, Obed was our regular customer. After a period of mutual cooperation and understanding, he has become our technical representative in Tanzania and can provide our customers with various technical support in Tanzania. At the end of 2020, we will have 23 injection molding machines and a large number of molds sent to Tanzania.In addition, our old friends in Switzerland repurchase one of our injection molding machines and several auxiliary machines every year. This is the greatest encouragement to our good service and quality!
Large Orders.
The order is from Turkmenistan. A customer friend of ours bought 26 injection molding machines, molds, and auxiliary machines of various models at one time. After receiving the order, we attach great importance to speeding up the operation of the workshop and completing the scheduled tasks in advance. While the machines are distributed in batches, we have dispatched engineers and technicians to help customers complete the full link work from planning and building the factory to the machine being put into production.
Government Program.
This project is a cooperation project between our company and Ethiopian AG Pipe Fitting Company in 2019. Our company started cooperation with Ethiopia a long time ago. We have delivered more than 15 injection molding machines and more molds to Ethiopia.
Packing & Delivery
We will apply lubricating oil and spray anti-rust agent to the products before shipment, prepare enough spare parts, and confirm that they are fully fixed before shipment. We pay attention to details and hope to bring you a better experience.
FAQ
1.Q:Are you a factory or trading company?
A: Industry and Trade Integration, we supply the factory price with good quality, welcome to visit !
2.Q:How does your factory do regarding quality control?
A:"Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end and we have a dedicated quality control department.
3.Q:What are your normal lead times?
A:Our company typical lead times range from 25-35days after receipt of order.We also have independent venues and engineers to deal with more urgent orders, which can be shipped within 2 weeks.
4.Q:About the price?
A:We will estimate the cost and provide you with the best price. We can guarantee you the best product quality and after-sales service at the same price.
5.Q:How is your machine different from other businesses?
A:We have optimized the overall layout of each part of the machine to make the machine run smoothly and have a longer service life. The fine parts have exclusive marks, which makes it more convenient for customers to replace parts and use.
6.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Shenzhou Machinery, No. 22 Zhenbei Road, Fenghuang Town, Suzhou Zhangjiagang City China. All our clients,from home or abroad, are warmly welcome to visit us!
You are welcome to send us samples, we will customize high-quality machines for you! Best wishes for you!

---
