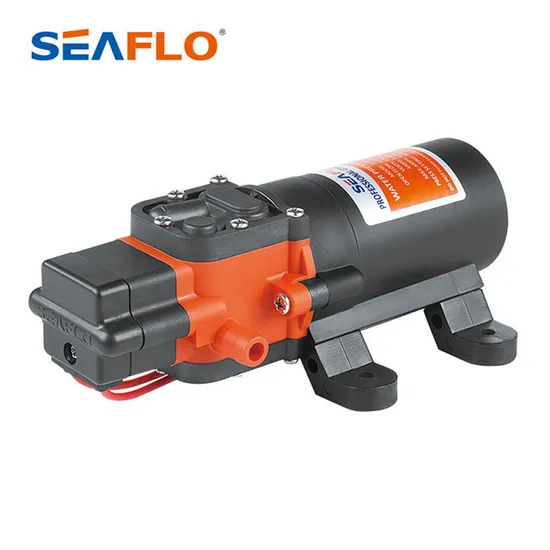

Seaflo Miniature Diaphragm Wine Transfer Food Grade Liquid Small Pump for Coffee Maker Machine

Product Description

SEAFLO Miniature Diaphragm Wine Transfer Food Grade Liquid Small Pump for Coffee Maker Machine
The Features&Benefits
How a Diaphragm Pump Works:
The pump is driven by an AC or DC motor
In front of the motor is a valve assembly containing two to five valve pump chambers. Each valve
chamber has a diaphragm behind it in the lower pump housing. As the motor shaft turns, an internal
cam positioned behind the diaphragms causes the diaphragms to be pushed forward, then back in
a continuous sequence creating a suction. As this suction builds, fluid is pulled through the inlet,
through the various valve chamber check valves to the outlet.
Details of this product
Technical Data
The volume of flow is determined by several factors including: The number and size of the pump chambers, cam offset, operating pressure, fluid viscosity

Motor Voltage	12/24V DC
Type	2 chamber positive displacement diaphragm pump, self priming, capable of being run dry
Mode	Demand
Certifications Option	CE Approval
Liquid Temperature	110°F (43°C) Max.
Priming Capabilities	4 feet (1.2 m) suction lift
Max Pressure	80psi (5.5bar)
Max Flow rate	3.8lpm (1.0gpm)
Inlet/Outlet Ports	3⁄8" hose barb
Duty Cycle	Intermittent
Leads	18 AWG, 13.78" long with 2-pin connector/ lead

STANDARD PUMP CONFIGURATIONS

	Model	GPM	Switch	Amps	PSI	Valves	Diaphragm	Ports	Voltage	Wire Connections
	SFDP1-010-040-21	1.0 GPM	Demand	4.0 MAX	40	EPDM	Santoprene	3/8" Barb	12V	2-Pin/Leads
	SFDP2-010-040-21	1.0 GPM	Demand	2.0 MAX	40	EPDM	Santoprene	3/8" Barb	24V	2-Pin/Leads

Performance
Application
1. Agriculture/Yacht / RV/Caravan pressurized water system
2. Sprayer fixture (Vehicle-mounted sprayer, electric sprayer)
3. Cleaning machine, Humidifier, Water purification, Medical apparatus
4. Food beverage filling & liquid transfer
5. Any other pressurization system
Backed SEAFLO's 1-Year Warranty!
Colors: Black or required
If you are interested, pls contact us!!!
FAQ
1. What is your MOQ?
100 pieces in general, but we also sale about 10--50 pieces for new costumers for their sample testing.

2. What about the delivery time?
It depends on your order quantity; it usually takes 15-25days upon receipt of your 30% deposit by T/T.
Sample can be delivered within 7days.

3. Can I buy different types in one container?
Yes, you can mix different types in one container.

4. Do you have oversea agents?
1. Of course. We have many agents overseas, such as Dacon Europe A/S in Denmark, A P Lifting Gear Company LTD in United Kingdom, SEAFLO MARINE & RV NORTH AMERICA, LLC in United States, Bin Alshaikh Abobaker for Treading in Yemen, Williams Industrial Products Pty Ltd/Marine Systems Australia and SEAFLO AUS pty in Australia, Azzi Sport Marine S.A.R.L in Lebanon, SARAY DENIZ MALZEMELERI YATCILIK SAN.TIC.LTD.STI in Turkey, RECAMBIOS MARINOS S.L in Spain, DINO CO.,LTD in South Korea.
2. Welcome oversea agents!

5.Do you accept OEM/ODM
Yes. We are also the OEM supplier of many famous companies, such as WALMAT.

6. What is your terms of payment.
T/T, 30% in advance, balance against B/L copy.

7. What is your warranty?
5 years, and within 24 hours reply will be provided to solve customers' problems.

8. What is your port of loading?
Fuzhou Port.

---
