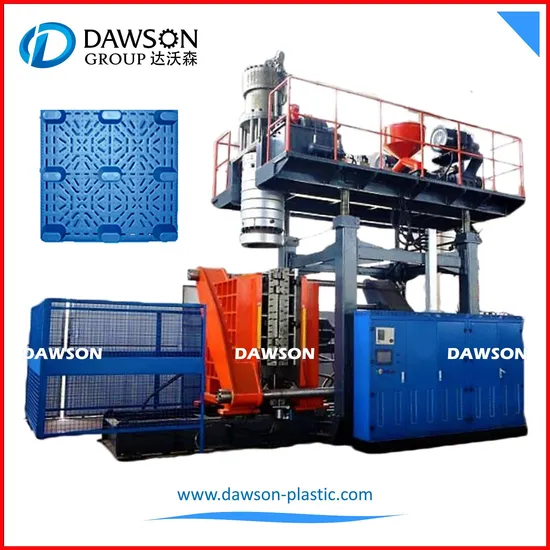

Good Quality Plastic Pallet Blow Moulding Machine HDPE

US$42,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
ABLD150
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE
Application
Drum, Table Board, Roadblocks, Medical Bed Board
Max. Product Volume
1500L
Blow Molding Machine Weight
72
Machine Dimension
11.5*7.5*8
PLC Control
Mitsubishi
Contactor
Schneider
Air Valves
Airtac
Hydraulic Valve
Taiwan Hitech
Clamping Force
1800 Kn
Length of Mold
1730-2200mm
Close/Open Stroke
1000-2700mm
Clamping Stroke Measurement
Transducer Italy Gefran
Programmer
Japan Moog
Accumulator Capacity
70L
Drive Motor
132*2 Kw
Transport Package
Film Packaging
Specification
ABLD150
Trademark
DAWSON
Origin
Jiangsu Zhangjiagang
HS Code
8477301000
Production Capacity
as Per Samples

Product Description

DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT***
Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

Extrusion Blow Molding Machine ABLD150
extruder
1 Screw diameter 120*2 mm
2 L/D ratio 33
3 Drive motor 132*2 Kw
4 Heating zone with cooling fan 6*2 zone
5 Output/Capacity 620~840 Kg/hr(HDPE particle)
6 Heating capacity 36*2 kw
Accumulator Head
1 Accumulator capacity 70L
2 Design First in and first out
3 Heating zone 6 zone
4 Heating capacity 64 kw
5 Max die&pin diameter 1000mm
6 Accumulator push-out stroke measurement Transducer Italy Gefran
7 Extruder stop Have
CLAMPING UNIT
1 Platen size 1800X2120
2 Length of mold 1730-2200mm
3 Clamping force 1800KN
4 Close/Open stroke 1000-2700mm
5 Clamping stroke measurement Transducer Italy Gefran
6 Hydraulic valve Taiwan Hitech
PARISON CONTROL
1 Programmer JAPAN MOOG
2 Servo valve
MOOG
3 Servo cylinder Intergret of die head
4 Hydraulic pack
 TAIWAN YOSHE Variable Displacement Piston Pumps
