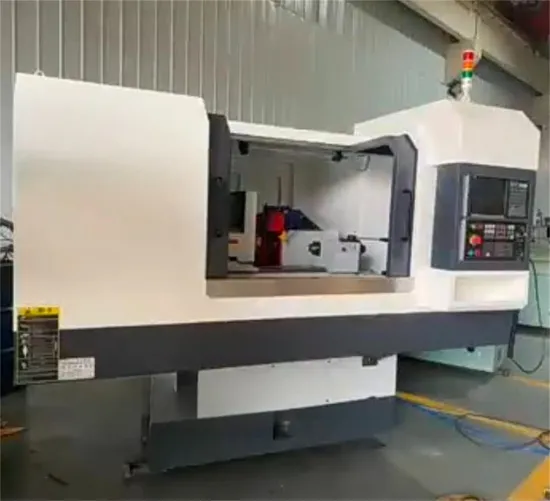

Hige Speed CNC Rectificadora for External Cylinder Grinding Grinder Metal Processing with Length 300mm

Product Description

Product Description
Grinding method
Product features
1. This grinder is a multifunctional equipment used for large-scale processing of outer circles, end faces, and arcs of shaft sleeve parts. Adopting a dedicated CNC system, the feed of the grinding wheel holder and the movement of the worktable are controlled by two axes respectively. Able to complete automatic cyclic grinding of multiple outer surfaces and end faces in one installation of the workpiece.
2. It has various functions such as automatic feeding of grinding wheels, coarse, fine, and spark free grinding, automatic shifting of workbenches, automatic switching of workpiece speeds, automatic dressing and compensation of grinding wheels through pre dressing, optional automatic measurement of workpieces (measuring instruments), and safety interlocking of cyclic actions.
3. The machine tool is equipped with a dedicated user interface, which includes coordinate setting screen, grinding wheel shape parameter setting screen, trimming parameter setting screen, measuring instrument tool compensation screen, grinding parameter setting screen, etc. These dedicated screens greatly facilitate user operation.

Product Parameters

Items		MK1312/300	unit
Grinding diameter		Φ8-Φ125	mm
Max. grinding length		300	mm
Center height		105	mm
Distance between centers		300	mm
Grinding wheel line speed		35	m/min
Grinding wheel size		Φ350*40*Φ127	mm
Grinding wheel motor power		3	kw
Max. loading		10	kg
Headstock spindle taper		M3#	/
Z axis (workbench)	Servo motor power	1.8	mm
	Servo motor torque	10	Nm
X axis (wheel head)	Servo motor power	1.2	mm
	Servo motor torque	8	Nm
