Newgear High Precision Low Backlash Helical Planetary Gearbox Speed Reducer For Servo Motor

Product Description

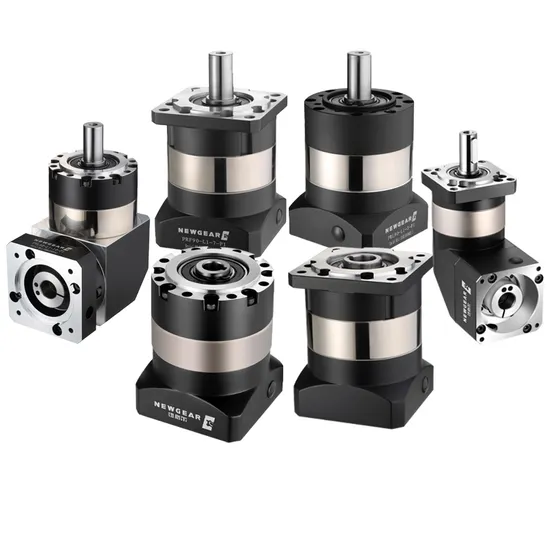

Newgear High Precision Low Backlash Helical Planetary Gearbox Speed Reducer For Servo Motor
The main transmission structure of planetary reducer is planetary gear, sun gear, internal gear ring and planetary carrier. Planetary gear reducer has the advantages of small volume, high transmission efficiency, wide deceleration range and high precision. It is widely used in the transmission system of servo motor, stepping motor, DC motor and other motors. Its function is to reduce speed, increase torque, reduce load and motor moment of inertia ratio on the premise of ensuring precision transmission.
Product Parameters

Specifications				PX42	PX60	PX90	PX120	PX140	PX180
Technal Parameters
Max. Torque			Nm	1.5times rated torque
Emergency Stop Torque			Nm	2.5times rated torque
Max. Radial Load			N	780	1530	3250	6700	9400	14500
Max. Axial Load			N	390	630	1300	3000	4700	7250
Torsional Rigidity			Nm/arcmin	2.5	6	12	23	47	130
Max.Input Speed			rpm	8000	8000	8000	8000	6000	6000
Rated Input Speed			rpm	4000	4000	3000	3000	3000	3000
Noise			dB	≤56	≤58	≤60	≤65	≤68	≤68
Average Life Time			h	20000
Efficiency Of Full Load			%	L1≥95% L2≥90%
Return Backlash	P1	L1	arcmin	/	≤3	≤3	≤3	≤3	≤3
		L2	arcmin	/	≤5	≤5	≤5	≤5	≤5
	P2	L1	arcmin	≤5	≤5	≤5	≤5	≤5	≤5
		L2	arcmin	≤7	≤7	≤7	≤7	≤7	≤7
Moment Of Inertia Table	L1	3	Kg*cm2	/	0.16	0.61	3.25	9.21	28.98
		4	Kg*cm2	0.03	0.14	0.48	2.74	7.54	23.67
		5	Kg*cm2	0.03	0.13	0.47	2.71	7.42	23.29
		7	Kg*cm2	0.03	0.13	0.45	2.62	7.14	22.48
		8	Kg*cm2	0.03	0.13	0.45	2.6	/	/
		10	Kg*cm2	0.03	0.13	0.4	2.57	7.03	22.51
	L2	12	Kg*cm2	/	0.13	0.45	0.45	2.63	7.3
		15	Kg*cm2	/	0.13	0.45	0.45	2.63	7.3
		20	Kg*cm2	0.03	0.13	0.45	0.45	2.63	7.3
		25	Kg*cm2	0.03	0.13	0.45	0.4	2.63	7.3
		28	Kg*cm2	0.03	0.13	0.45	0.45	2.43	7.1
		30	Kg*cm2	/	0.13	0.45	0.45	2.43	6.92
		35	Kg*cm2	0.03	0.13	0.4	0.4	2.43	7.1
		40	Kg*cm2	0.03	0.13	0.45	0.45	2.43	6.92
		50	Kg*cm2	0.03	0.13	0.4	0.4	2.39	6.92
		70	Kg*cm2	0.03	0.13	0.4	0.4	2.39	6.72
		100	Kg*cm2	0.03	0.13	0.4	0.4	2.39	6.72
Technical Parameter	Level	Ratio		PX42	PX60	PX90	PX120	PX140	PX180
Rated Torque	L1	3	Nm	/	40	105	165	360	880
		4	Nm	17	45	130	230	480	880
		5	Nm	15	45	130	230	480	1100
		7	Nm	12	45	100	220	480	1100
		8	Nm	/	40	90	200	/	/
		10	Nm	10	30	75	175	360	770
	L2	12	Nm	/	40	105	165	440	880
		15	Nm	/	40	105	165	360	880
		20	Nm	17	45	130	230	480	880
		25	Nm	15	45	130	230	480	880
		28	Nm	17	45	130	230	480	1100
		30	Nm	/	40	105	165	480	1100
		35	Nm	10	30	130	230	480	1100
		40	Nm	17	45	130	230	480	1100
		50	Nm	15	45	130	230	480	1100
		70	Nm	12	45	100	220	480	1100
		100	Nm	10	30	75	175	360	770
Degree Of Protection				IP65
Operation Temprature			ºC	- 10ºC to -90ºC
Weight	L1		kg	0.5	1.25	3.75	8.5	16	28.5
	L2		kg	0.8	1.75	5.1	12	21.5	40

Company Profile
FAQ 1. Who are we?
Hefa Group is based in Guangdong, China, start from 1998,has a three subsidiaries in total.The Main Products is planetary gearbox,timing belt pulley, helical gear,spur gear,gear rack,gear ring,chain wheel,hollow rotating platform,module,etc
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. How to choose the suitable planetary gearbox?
First of all,we need you to be able to provide relevant parameters.If you have a motor drawing,it will let us recommend a suitable gearbox for you faster.If not,we hope you can provide the following motor parameters:output speed,output torque,voltage,current,ip,noise,operating conditions,motor size and power,etc
4. Why should you buy from us not from other suppliers?
We are a 22 years experiences manufacturer on making the gears, specializing in manufacturing all kinds of spur/bevel/helical gear, grinding gear, gear shaft, timing pulley, rack, planetary gear reducer, timing belt and such transmission gear parts
5. What services can we provide?
Accepted Delivery Terms: Fedex,DHL,UPS;
Accepted Payment Currency:USD,EUR,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union;
Language Spoken:English,Chinese,Japanese
6. What's your lead time?
Generally speaking, our samples will need 7-15 days.
we are very flexible on the lead time, it will depend on the specific orders

---
