CNC Gantry Drilling Milling Machine for Pressure Vessel Boiler Heat Exchanger CNC Gantry Movable High Speed Tube Plate Flange Drilling Machine

Product Description

Hot Sell PMD Series CNC Drilling Milling Tapping Machine for heat exchanger
Product Description

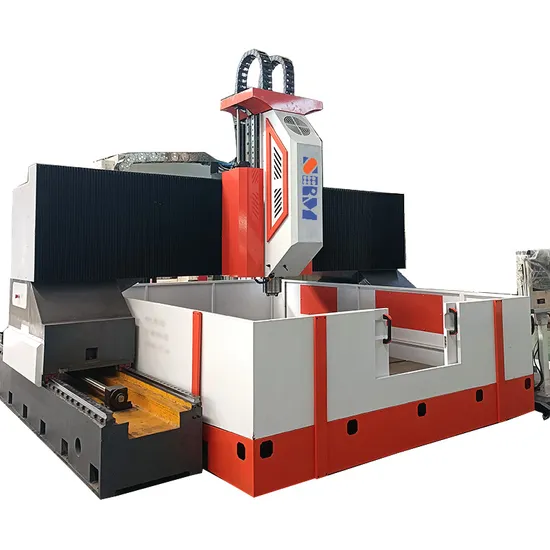

P -M-D Series is a gantry mobile CNC high-speed drilling and milling machine. It is mainly used for drilling, countersinking, chamfering, grooves in holes, and milling of workpieces such as flanges, heat exchangers, tube sheets, and slewing supports. The high-speed alloy drill bit can be used for internal cooling high-speed drilling, and the high-speed steel twist drill bit can also be used for external cooling drilling. The drilling depth can reach 10D (10 times the diameter) by using a special crown drill bit. The machining process is numerically controlled, the operation is very convenient, and it can realize automatic, high-precision, and many kinds of mass production.

Application

This machine is suitable for drilling plate & pipe,baffle and flangin the petrochemical,boiler,refrigeration,wind power flange and other industries.It can also be used in the of connecting plate in the steel structure such as building,bridge,tower and so on
Product Parameters

Product name	CNC drilling machine
Working Area	3000*3000mm
Bed Material	Gray Iron Casting
Feed Method	Servo Feed (ball screw)
Rotation Speed	0-10000 rpm/min
Control System	SIEMENS system
Stack Workpeice Thickness	300mm
Spindle Method	BT40/BT50 (Accept customization)
Clamping method	T slot
ATC	≥6
Max.Tapping Diameter	M42

Machine detailed


Manufacturing Process
We have cooperated with experienced shipping forwarders for many years, they arrange the shipment. No matter by express, by air or by sea, we will track the course of the goods all the way, to make sure goods arrive at you on time and in good condition.
Company Profile

Why Choose Raintech SANS?
CERTIFICATE
International exhibitions
Customer visits
FAQ
♥1.How to operate the machine ?
We will deliver English manual and video with the machine to you. lf you still need our help, please contact us.
♥2.If some problems happen to this machine during warranty period, what should I do?
We will supply free charge of spare parts and regularly maintenance service during machine warranty period if machine have some problems. So any doubts, just let us know, we will give you solutions.

♥3.Does the machine can be customized according to my requirements ?
Yes, we have a strong technical team and have rich experience.

♥4. What about the package and shipment ?
The machine will be packaged by multilayer plastic wrap for anti-humidity on the sea. The strong steel wire roops will be used for fix the machines in container to avoid any damage in transportation.

---
