Small Type Gantry Milling Machine 2010t Worktable 3000X1000

Product Description

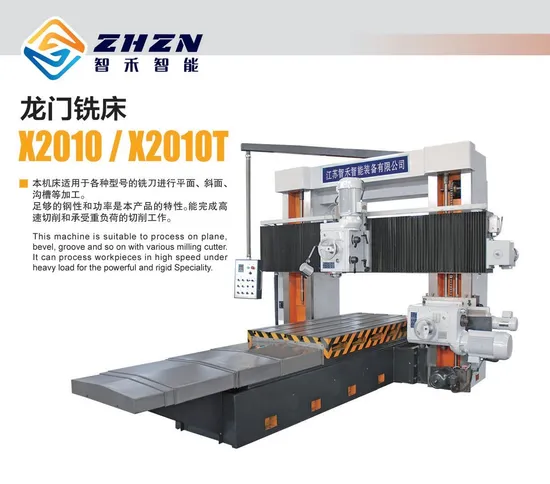

Precision Planer Miller X2010t
This machine is suitable to process on plane, bevel, groove and so on with various milling cutter, it can process workpiece in high speed under heavy load for the powerful and rigid specicality

Description		X2010	X2010T
Max. Processing capacity(L × W × H)	Mm	2000X1350X1000	3000 X1350X1000
Distance between columns	Mm	1400	1400
Size of worktable	Mm	2000X1000	3 000X1000
Power of worktable feed motor	Kw	2.2	3
Power of vertical milling heard motor	Kw	7.5	7.5
Power of side milling head motor	Kw	7.5	7.5
Number of milling head	Piece	2	2
Speed of cutting feed		Stepless step change	Stepless step change
Range of the spind speed		6(82-506)	6(82-506)
Number of T-slots		5	5
Width of the T-slot	Mm	22	22
max. load	Kg	8 000	10000
W eight	Kg	15000	18000
Overall dimensions of machine L*W*H	mm	5500X3200X2800	7400X3200X2800

WORKSHOP
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as surface grinding machine, CNC surface grinder ,CNC Milling Machine ,Vertical Machining Center ,Drilling Machine ,gantry milling machine , CNC gantry milling machine, CNC gantry grinding machine so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in NO 370 Changjiang North Road, NANTONG ,JIANGSU ,CHINA. If you have interest to visit our factory, pls inform
me ahead, i will arrange and company you your visit period.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
