Ut-King Mini Type Fiber Optic G657A11X2 with Sc APC Connector PLC Splitter

US$3.20
1,000-9,999 Pieces
US$2.80
10,000+ Pieces

Basic Info.

Number of Cores
Single-Core
Ferrule Endface
APC
Shape
Strip
Fabrication Process
Injection Molding
Application
Fiber Distribution Frame, Network Equipment, Fiber Module
Light Source TYPE
Fiber
Connector Type
SC-APC
Brand
OEM
Return Loss
50dB
Insertion Loss
0.3dB
Fiber Type
G657A1
Operating Wavelength
1260nm-1650nm
Mode
Singlemode/Multimode Optional
Product Name
Sc PLC Optical Splitter
Length
1.5m or Customized
Transport Package
Carton
Origin
China
Production Capacity
1000000/Day

Product Description

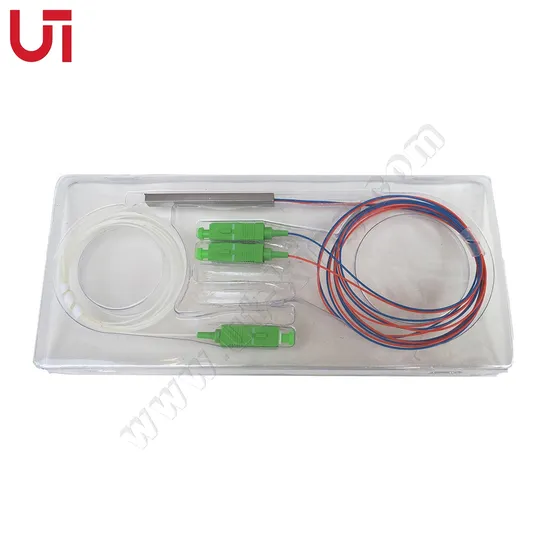

Mini Type Fiber optic PLC Splitter 1x2 with SC APC connector
PODUCT FEATURES

Low IL and PDL High reliability High channel counts Wide wavelength range Large operating temperature range Excellent Environmental & Mechanical Stability

APPLICATION FTTX (FTTP, FTTH, FTTN, FTTC) Local Area Networks (LAN) Test Equipment CATV Analog/Digital Passive Optical Networks (PON) SPECIFICATION
Port Configuration
1x2
 1x4
 1x8
 1x16
 1x32
 1x64
Fiber Type
SMF-28e or customer specified
Operating Wavelength (nm)
1260~1650
Insertion Loss (dB)
Typical
 3.6
 6.8
 10.2
 13.3
 16.2
 20.5
Max
 4.0
 7.4
 10.5
 13.5
 16.9
 21.0
Loss Uniformity (dB)
Max
 0.5
 0.7
 1.0
 1.4
 1.8
 2.0
Return Loss (dB)
Min
 55
 55
 55
 55
 55
 55
Polarization Dependent Loss(dB)
Max
 0.2
 0.2
 0.3
 0.3
 0.3
 0.4
Directivity (dB)
Min
 55
 55
 55
 55
 55
 55
Wavelength Dependent Loss(dB)
Max
 0.3
 0.3
 0.3
 0.8
 0.5
 0.8
Temperature Dependent Loss (-40~85 ºC) (dB)
Max
 0.5
 0.5
 0.5
 0.8
 0.8
 1
Operating Temperature (ºC)
 -40~+85
Storage Temperature (ºC)
 -40~+85
Packaging Size (mm)
 Fan-Out
 60x7x4
 60x7x4
 60x7x4
 60x12x4
 80x20x6
 80x20x6

2×N PLC splitter
Port Configuration
2x2
 2x4
 2x8
 2x16
 2x32
 2x64
Fiber Type
SMF-28e or customer specified
Operating Wavelength (nm)
1260~1650
Insertion Loss (dB)
Typical
 3.8
 7.4
 10.8
 14.2
 17
 21
Max
 4.2
 7.8
 11.2
 14.6
 17.9
 21.5
Loss Uniformity (dB)
Max
 1.0
 1.4
 1.5
 2
 2.5
 2.5
Return Loss (dB)
Min
 50
 50
 50
 50
 50
 50
Polarization Dependent Loss(dB)
Max
 0.2
 0.2
 0.4
 0.4
 0.4
 0.5
Directivity (dB)
Min
 55
 55
 55
 55
 55
 55
Wavelength Dependent Loss(dB)
Max
 0.8
 0.8
 0.8
 0.8
 0.8
 1
Temperature Dependent Loss (-40~85 ºC) (dB)
Max
 0.5
 0.5
 0.8
 0.8
 1
Operating Temperature (ºC)
 -40~+85
Storage Temperature (ºC)
 -40~+85
Packaging Size (mm)
 Fan-Out
 60x7x4
 80x12x4
 80x12x4
 80x20x6
