Water Tank Fire Fighting Truck 5000L 8000L Fire Rescue Fighting Equipment Special Truck with Good Quality

Product Description

Product Description Fire fighting truck also known as a rescue truck, is a vehicle designed and manufactured to be used by firefighters as needed, equipped with various types of firefighting equipment or extinguishing agents, and used by firefighting forces for firefighting, auxiliary firefighting or fire rescue. Most national fire departments in China also use them for other emergency rescue purposes. Fire engines can transport firefighters to the scene of a disaster and provide them with a variety of tools for performing disaster relief tasks. Modern fire trucks are usually equipped with steel ladders, water guns, portable fire extinguishers, self-contained breathing apparatus, protective clothing, demolition tools, first aid tools and other equipment, some of which also carry large fire-fighting equipment such as water tanks, pumps and foam fire-fighting devices. The appearance of fire trucks in most areas is red, but there are also some areas where the appearance of fire trucks is yellow, some special fire trucks, which usually have alarm bells and sirens, warning lights and flashing lights on top. Common types of fire trucks include water tanker, foam fire truck, pump fire truck, aerial platform fire truck, ladder fire truck, etc.

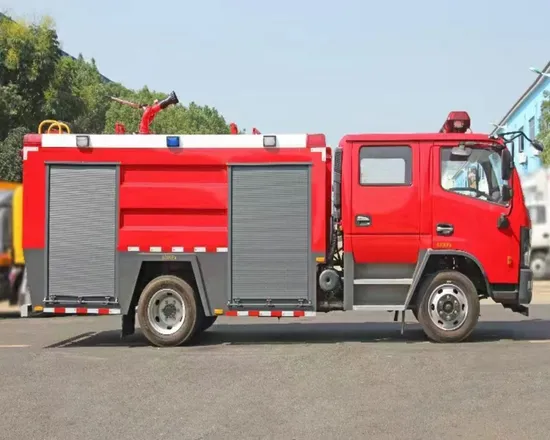

Dongfeng Dolica water tank fire truck is composed of two types of car chassis, water tank, pump, pipeline, instrument circuit system and other components, the car assembly after aluminum alloy ladder (removable), pump room in the tail of the vehicle, tank body welded steel plate, liquid load 5 square, water tank material for high-quality carbon steel plate, water tank internal anti-corrosion treatment. The vehicle is equipped with CB10/30 fire pump,PS30 fire cannon.
Technical parameter

Outer dimension:	7010x2200x3100mm(The actual data prevails)
Max total mass:	11250kg
Liquid load:	5000Lwater
Maximum speed:	95km/h
Rated flow of water pump:	30L/s 1.0MP
Capacity discharge of water cannon:	30L/s 1.0MPa
Watercannon range:	≥50m
Approach Angle/departure Angle:	21°/11°

Structure: flat head, four doors double row cab.
Seat setup: 2 in front (including driver) + 4 in back

Tank volume
Capacity: 5000Lwater
Material: Water tank high quality carbon steel plate, internal anti-corrosion treatment,foam tank is 304 stainless steel material.
Structure: steel plate welding type, internal fortificationswing plate
Equipment:2 entrance covers with quick locking and opening device;2 overflow devices;2 level indicators;2 sewage outlets, manual valve control
Piping system Tank pipe material is high-quality seamless steel pipe, through the flange and the parts are connected.
Tank outlet pipe:a DN100 tank outlet pipe is provided, and the water is providedby the tank body Enter the fire pump, equipped with 1 DN100 manual butterfly valve,The water tank is connected to the fire pump through the DN100 flexible connector.
External water inlet pipe: There is an external water inlet at the rear of the fire pump, and the external 100 suction is connectedWater pipe, threaded pipe tooth interface (KA100 pinch cover seal);
Outlet pipe:
There is 1 DN80 atmospheric water outlet on the left and right of the fire pump;
1 DN80 gun pipe, using DN80 flexible joint,Controlled by DN80 ball valve.
Water injection pipes:
2 DN65 pipes (external water injection) are distributed on both sides of the equipment box in the front of the body;
1 DN65 tank water injection pipeline, can be directly injected into the tank through the fire pump;
Discharge water pipe:In orderto protectthe pump and the ball valve, the lowest part of the pipeline is installed with discharge water valve.
Cooling water pipe: In order to make the force extractor cope with various complex situations in the work, it is equipped with cooling water
The seat of the independent crew room is equipped with 4 sets of AT-type air call brackets AT the back, and the combatants can be equipped with air breathing apparatus before getting off.
The optional ladder can be placed on the roof ladder turnover rack, and one person can access it on the ground.
The equipment box is equipped with aluminum alloy drawers, horizontal rotating trays, and vertical brackets for turning equipment, so that various equipment can be placed reasonably and space utilization rate > 80%.
Use anti-rust, anti-vibration, anti-fall, anti-scratch special fixture to fix all the equipment in the equipment table.
