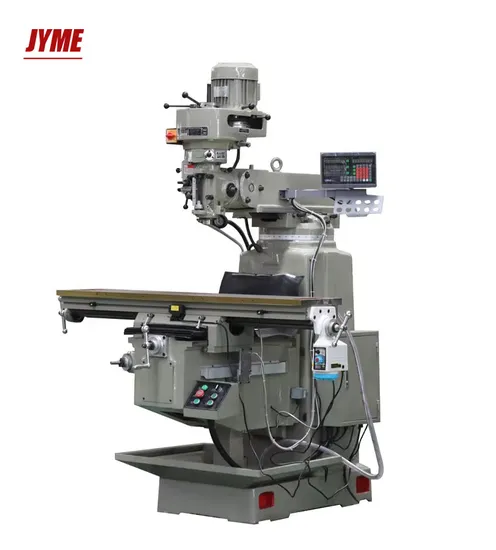

Turret Milling Machine Price List 4h Vertical Milling Machine

US$2,700.00-3,300.00 1 Piece (MOQ)

Basic Info.

Model NO.
4H
Power Source
Manual
Automatic Grade
Manual
Setting Mode
Table
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Table Size
1270*254mm
Table Longitudinal Travel
780-850/880-980mm
Table Cross Travel
380-420/380-420mm
Spindle Taper
R8 Nt30 Nt40
Spindle Travel(mm)
127mm
Spindle Speed
16
Machine Size
1800X 1780X 2350mm
Machine Weight
1200kg
Transport Package
Wood CTN
Trademark
JYME
Origin
China
Production Capacity
1000

Product Description


1. Robust construction and heavy duty design.2. The machine body is made of Meehanite cast iron3. The milling head is made of SCM-21.Imported from Taiwan.4. The milling head can swing 90° right and left side,45° front and back side.5. The ram can swing 180° horizontally.6. The working table and guide rail are heating treated and precision grinding.7. DRO and dividing head are for option.8.Table automatic feed on X,Y,Z direction by gear driven.
Parameters:
Machine model
4H
Table size
1270*254
1370*254

travel
Longitudinal travel(mm)
780-850
880-980
Cross travel(mm)
380-420
380-420
Vertical travel(mm)
350-380
350-380

Spindle
Spindle taper
R8 NT30 NT40
Spindle travel(mm)
127
Spindle speed
16
Spindle feed(mm)
0.076 / 0.003 0.038 / 0.0015 0.203 / 0.008
Low speed(r/min)
66,110,175,270,550,930,1460,2270
high speed(r/min)
132,220,540,1100,1860,2920,4540

T-slot
mm)
3X16x65

Main motor
3HP / 2.2KW 5HP / 3.7KW
Lifting motor
1.1Kw
Working weight (Kg)
350
Machine Dimensions (mm)
1800X 1780X 2350
Net weight (kg)
1200
