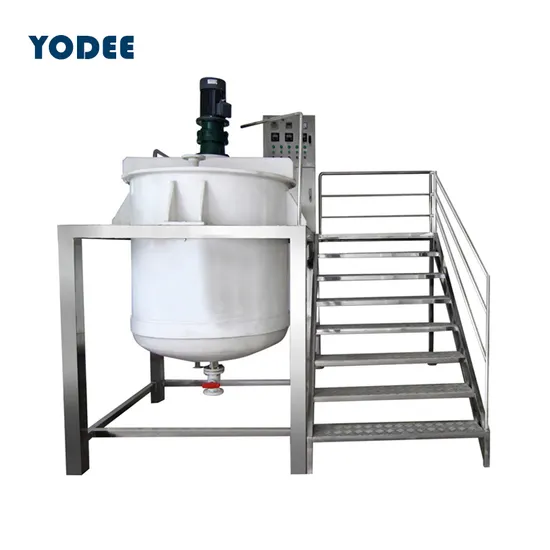

Anti-Corrosive PE Plastic PP Carbon Steel Industrial Chemical Liquid Mixing Tank with Agitator

Product Description

Anti-Corrosive PE Plastic PP Carbon Steel Industrial Chemical Liquid Mixing Tank with Agitator
This Anti-Corrosive mixing tank is mainly used in chemical, medicine, petroleum, and other industrial lines. It is specially for the strong causticity products. Such as the strong acid and alkaliand water for hair care product.
Technical Features
1. The mixer pot is made of PP, PVC, plastic material, It is very hard to reaction with any chemical product.
2. The stirring blade is made of enamel, Mixing Speed: 0-63rpm, frequency conrol.
3. Mixer tank is equipped with an explosion-proof motor, easy to operate.
4. The work pressure≤-0.01Mpa, work temperature(PP):-10ºC~100ºC, PVC-10ºC~60ºC.
Machine Type
YD-MT-1: The general liquid mixing tank is equipped with 0-63 rpm variable frequency speed regulation stirring, and the bottom is equipped with a high-speed homogenizer which can be variable frequency speed 0-3300 rpm, providing steam heating and electric heating for customers to choose. Usually suitable for large-scale industrial production.
YD-MT-2: Without a homogenizer mixing tank, it is mainly suitable for detergents, cleaning agents, and low-viscosity liquids. At the same time, it is equipped with a 0-63 rpm variable frequency stirring pot. It can also be used as a pretreatment dissolving pot, and is equipped with steam heating and electric heating.
YD-MT-3: Small single-pot mixing tank is suitable for pilot test or laboratory cost ratio analysis before large-scale industrial production, and can also be used as a pilot for small-scale production.
YD-MT-4: PVC anti-corrosion mixing tank is mainly suitable for corrosive products, such as toilet cleaner, etc.
YD-MT-5: The two main pot combined mixing tank are equipped with stirring and homogenization. In the case of relatively large output, the combined stirring pot can save the area of production and centralized feeding and discharging to the greatest extent. In operation More convenient and convenient. Suitable for medium-volume industrial production.
YD-MT-6: Combined mixing tank with multiple main pots, in super-large industrial production, multiple mixing pots share the same platform, so it can be more convenient in feeding and equipment cleaning and maintenance, and can be equipped with a fully automated intelligent operating system. Homogenization, heating and other functions, the platform can be equipped with anti-skid, waterproof and other functions, in the early stage of equipped with material hoist, the entire industrial production can be completed on the platform, or a PC-side remote control system can be used, which can reach the workshop to the greatest extent. Unmanned and intelligent.
Notice: The above information only provides a brief introduction for customers' reference. For detailed application scenarios, please contact the yodee team directly for consultation and discussion.
Parameter

Capacity	Tank Body Diameter(mm)	Tank Body Height(mm)	Outlet Diameter(mm)	Stirring Power(kw)	Stirring Speed(r/min)
400L	800	1050	50	1.5	0-63
800L	800	1340	50	2.2	0-63
1000L	1000	1550	50	3	0-63
2000L	1200	2000	50	4	0-63
3000L	1650	2300	63	5.5	0-63
5000L	1800	2500	63	7.5	0-63

Engineering Case
About Yodee
After-sale Service
1. YODEE products will provide a one-year machine warranty service, and accessories will be replaced free of charge.
2. YODEE will provide lifelong machine technical support and technical support services for the later transformation of the old factory.
3. YODEE will provide engineers to guide the installation of equipment and equipment maintenance training services at the customer's factory if necessary.
4. YODEE can accept customer engineers to Chinese factories for equipment training.
Shipment Service
1. If you have a transportation agent, you can directly arrange to come to our company to pick up the goods.
2. If you do not have a transportation agent yet, YODEE will provide you with different ways of machine transportation services (sea, air, express, rail transportation) according to different situations for choice.
3. Under special circumstances, if the machine exceeds the shipping size of the container, YODEE will still plan and provide you with the best shipping plan for you to choose. Remark
All machine can provide customized service, Please write your requirements and information to Contact YODEE directly at any time, the YODEE TEAM will respond you within 12 hours.

---
