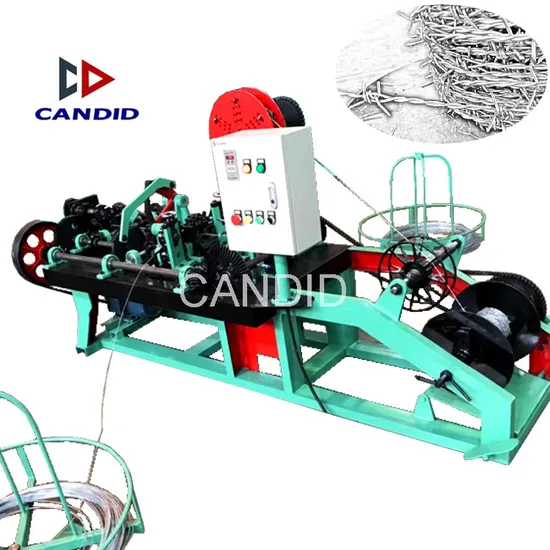

High Efficiency Galvanized Wire Professional Design Chain Link Fence Machine

Product Description

High efficiency automatic Barbed Wire Making Machine Descriptions: This machine can produce positive and negative twisted barbed wire which is widely used in national defense, railway, highway, animal husbandry and other industries.
The materials used for positive and negative twisted barbed wire are usually hot dipped galvanized wire, electric galvanized wire etc.
Positive and negative twisted barbed wire use positive and negative way for winding flowers, the barbed wire products produced has no rebound and winding phenomenon, so it is more beautiful compared with the general barbed wire.
Technical parameter

Item	Unit	CS-A	CS-B	CS-C
Motor power	kw	2.2/3	2.2/3	2.2/3
Voltage	v	380V.50Hz or customized
Main shaft speed	r/min	402	355	355
Strand wire diameter	mm	1.6-3.0	1.6-3.0	1.6-3.0
Barb wire diameter	mm	1.6-3.0	1.6-3.0	1.6-3.0
Barb pitch	inch	3/4/5/6	3/4/5/6	3/4/5/6
Twist number	/	3-5	3	7
Raw material	/	Galvanized wire, PVC coating wire, black wire etc
Production	/	20m/min	17m/min	17m/min

Product show

---
