D280G*700mm Precision Metal Lathe Machinery with Ce

Product Description

Features: Widely useful, operation very easy, processing scope widespread
Guaranteed concentricity precision of the main spindle less than 0.009 mm
Concentricity precision - lathe chuck smaller than 0.05 mm
Easy operating gear box has various speeds and thread cutting function
High precision and hardened spindle
Precision-manufactured, taper roller bearings in P5 quality
Powerful, maintenance-free motor
Induction-hardened and ground prismatic bed made from cast iron
Safety magnetic and lock key European-standard switch
Cost-efficient, precise and of stable value
Main Specification:

Specification	D280×700G
Max. swing over bed	Φ280mm(11")
Distance between centers	700mm(27-1/2")
Spindle bore	Φ26mm(1")
Taper of spindle bore	MT4
Rang of spindle speeds(6 steps)	125-2500rpm
Taper of tailstock quill	MT2
Metric threads can be cut	0.2-3.5mm
Inch threads can be cut	8-56T.P.I
Motor power	0.75kw
N.W./G.W.	180/202kw
Package size(L×W×H)	1390×700×630mm

Standard Accessories:
3-Jaw chuck
Chuck guard
Change gears set
Splash guard
Oil tray
Tool box and tools
Optional Accesssories:
Steady rest
Follow rest
Face plate
4-jaw chuck
live center
Halogen lamp
lead screw production
Coolant pump
Machine Stand

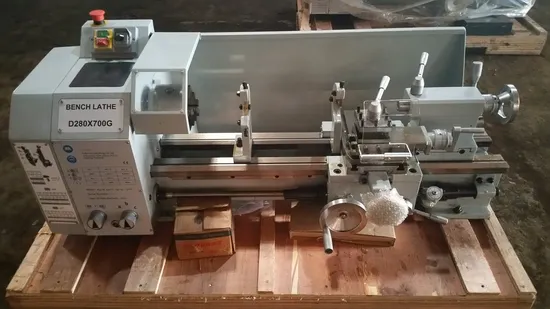

Machine's Detailed Pics.
Guarantee Terms:
Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time. Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.
If you are interested in our mini lathe machine, please dial +86-5662091958 or send e-mail to us.

---
