Chinese Stock Available Hydraulic Chain Type Jacks/Lifting Jack for Hydraulic System for Tank Building

Product Description

Hydraulic jacking equipment is a new and special lifting equipment powered by hydraulic oil. By pushing the reciprocating movement of the hydraulic cylinder piston, load conversion is carried out between the upper clamping mechanism connected with the upper end of the piston and the lower clamping mechanism connected with the lower part of the cylinder, so as to realize lifting.The hydraulic jacking equipment is a single-acting two-stage hydraulic cylinder, used for vertical take-off and landing work, return need external force or self-weight back.The equipment is compact, stable, easy to operate, adjustable load, fast installation, high synchronization accuracy.
Reference Parameter
I. PUMP STATION(YB-40)

Maximum pressure	25MPa
Power	11KW
Rated oil flow	40L/min
Motor rotate speed	1470r/min
Oil tank capacity	240L
System temperature	20-60ºC
Oil filter precision	20υm
Voltage	Main power supply 220V, 3 phase)
System oil type	L-HM46# antiwear hydraulic oil
Total weight	370Kg
Outsize(mm)	950*850*820

II. SQD-120-100S.F JACKS

Theory lifting capacity	123KN
Rated lift capacity	120KN
Rated oil pressure	18MPa
Hydraulic stroke	100±0.5mm
Glissade capacity	≤5mm
Weight	≤30Kg
Oil outlet	M16*1.5
Installation size for jack base	Settle 4-M16 on the circumference of a φ120 circle
Installation size for up and down chuck	Settle 3 *16U hole on the circumference of a φ110 circle
Size(mm)	138*138*500
Suitable lifting rod	φ32round steel(45#)
Chuck device	Screw mechanism

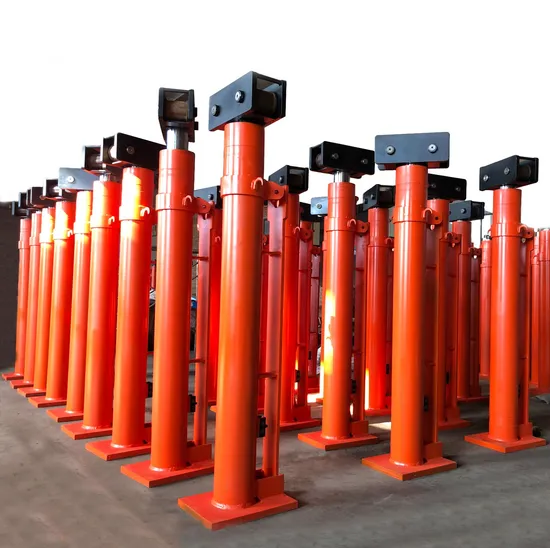

III. JACK SUPPORT(TSJ-120-2600L)

Total height	3460mm
Lifting rod height:	3900mm
Slider stroke	2630mm
Sliding block guide wheel quantity	4 pcs
Lifting rod diameter	φ32mm
distance between expansion loop support to ground	310mm
Size(mm)	3900*300*300

VI. WHAT WE CAN BRING TO YOU?
1. Support you to win the project during bidding phase. We can provide your more suitable configurations to help you shorten the constrcution time.
2. We can provide all technical documents and advices to support you for construction procedure clearifications
3. We can calculate the most suitable number of hydraulic jack according to the weight of the tank
4. We can provide your suitable hydraulic jack accessories with much more competetive price from our long time business partner if you need.
5. We can provide site people training service, and operation service or manpower service or as a subcontractor.

---
