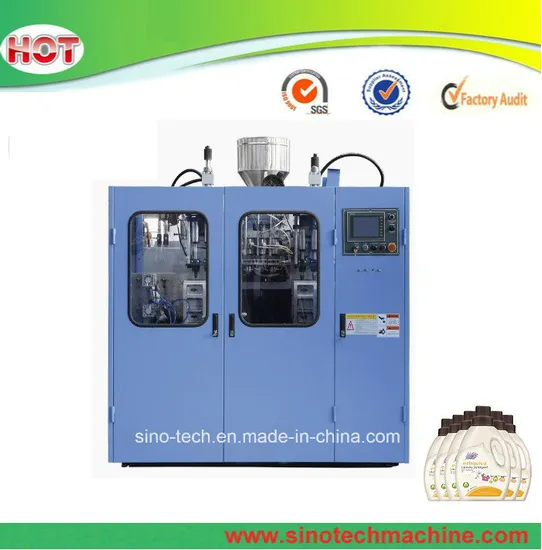

Plastic Bottle Automatic Extrusion Blow Molding Machine/2 Liter Bottle Plastic Extruder Machine

Product Description

Plastic Bottle Automatic Extrusion Blow Molding Machine/2 Liter Bottle Plastic
Extruder Machine
Detailed Description
1. Electronic control system: Japanese mitsubishi PLC computer and human interface (Chinese or English) control, touch operation screen operation.
All process Settings, changes, retrieval, monitoring, fault diagnosis and other functions are implemented on the touch screen without point contact working principle and components are durable.
2. Hydraulic system: proportional pressure control, equipped with imported famous hydraulic components, stable and reliable.
3. Plasticized system: effectively plasticized the mixing screw to ensure that plastic is plasticized fully and evenly.
4. Speed regulating system: variable frequency speed control 10 alloy steel hard tooth surface reduction box, speed adjustment, low noise, long sealing.
5. Opening and closing mode and moving mode system: large beam arm, three-point and center locking die mechanism to ensure long-term use.
The locking force is balanced and not deformed, and adopts the translation mechanism (ball guide rail). High precision, little resistance and fast speed.
6. Blow pin rack: the integral Angle ruler type blow needle rack, stable and unmoved, ensure that the incisions are smooth.
Technical Parameter

	ST-2L	STII-2L
Max. Product Volume(L)	2	2
Station	Single	Double
Dry cycle (PC/H)	900	900*2
Screw Diameter (MM)	50	60
Screw L/D Ratio (L/D)	25	25
Screw Drive Power (KW)	11	15
Screw Heating Power(KW)	6	9.7
No.of heating zone(Srew)	3	3
Output of HDPE(kg/h)	50	60
Hydraulic pump driving power (KW)	5.5	5.5
Clamping force(KN)	37	37
Platen distance (MM)	138~368	138~368
Max. Size of Mold(W*H)(mm)	310*320	310*320
Central Distance Of Bi-head(mm)	130	130
Max.Die diameter(mm)	72	72
No. of heating zone(Zone)	5	5
Heating power(KW)	7	7
Blowing pressure(Mpa)	0.6	0.6
Air consumption(m³/MIN)	0.4	0.4
Cooling water pressure(Mpa)	0.2~0.3	0.2~0..3
water consumption(L/MIN)	35	35
Size of machine(L*W*H)(m)	2.78*1.55*2.35	3.2*2.12*2.55
Weight of machine(TON)	3.3	3.9

Detail Show
Production workshop
Packing & Shipping

After Sales service:
1. We offer you the free machine operation training happened in China.
2. Offering the free testing and installing of the machine in the buyer factory, but the fee of the visa, the ticket, food and living should be in the buyer's charge.
3. The spare parts of the machine and the auxiliary machine can be supply by us.
4. The guarantee of the machine is one year under the normal operation.
5. We offer the customer the technology for free for all life time.
Any question,please call me:
MOB&waspp: +8613773240086

---
