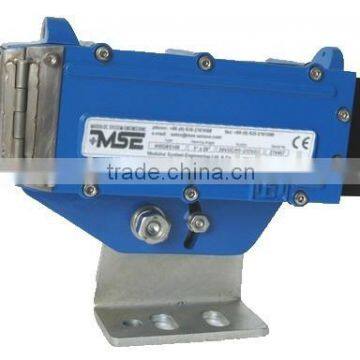

GERMANY-QUALITY HOT METAL DETECTOR MSE-HMD85
USED IN STEEL MILL
1. General Description
The MSE-HMD85 Hot Metal Detector is a robust sensor activated by the infra-red radiating from the hot product. Impervious to water or steam it is built to withstand the harshest of environments. The product is detected via a highly stable InGaAs Photodiode to ensure detection regardless of heavy water and steam and incorporates filtering that removes the visible spectrum to minimize sensitivity to extraneous light. The precise 0.5° x 25° lens ensures accurate detection of strip and accommodates bar bounce.
MSE-HMD85 Hot Metal Detector is the economical choice. Now there is no need to stock various Detectors for each location. Costly multiple inventory can be
replaced by one Detector.
2. Rear Bar Display
The rear bar display allows the user to clearly establish the amount of received IR both from the background metalwork and the bar being detected and thereby establishing the correct trip level required. This display also allows the user to align the Detector from a low energy source such as a flashlight, which normally would be insufficient to switch the Detector. Adjustment of both the threshold and the response time is also clearly defined by this bar.
3. Air & Water Specifications
Air Pressure: 1 cu ft./min at 5 PSI for normal conditions
5 cu ft./min at 15 PSI for severe conditions
Water Pressure: 5 to 10 PSI, 40 PSI Maximum
Water Volume: Regulate between 0.2 - 0.3 liters/min.
Water Temp.:
For Ambient Temperature up to 70°C use ambient water below 20°C
For Ambient Temperature up to 80°C use water chilled up to 10°C
4. General Specification

Lens F.O.V. (Filed of View)	0.5° x 25° Rectangular Slit
Sensing Element	InGaAs Sensor
Power Indication	Blue LED
Function Indication	Top & Bottom Yellow LED's
Remote Self-Check	Middle Yellow LED's
Min/Max I.R. Threshold Settings	Adjustable from 270°C via Programming Switch
Response Time	1 ms to 250 ms, via Programming Switch
Supply Voltage	Standard: 80 - 240 VAC, 50/60 or 24 VDC ± 10%
Power Consumption	5 W
Operating Temperature	1. -20°C to +50°C without Air Cooling 2. -20°C to +60°C with Air Cooling 3. +2°C to +70°C with 20°C Water Cooling 4. up to 80°C with Heat Shield

Welcome to Moduloc System Engineering
We produce optical instruments and sensors for industrial measurement and assist in setting up production of OEM products. Our German management and European standards permit good “German quality” of all products. Consulting in protection of investor’s rights from patent infringement is our advantage too. We plan to expand our production range and are looking for cooperation especially with European and American companies.
Contact us
If You are interested in cooperation or need some more information, please contact us.

Moduloc System Engineering Co., Ltd. (Yantai)
Jerry Liu
Telephone:	86-0535-2161086
Mobile Phone:	150 9850 7080
Skype:	lxw-mse
