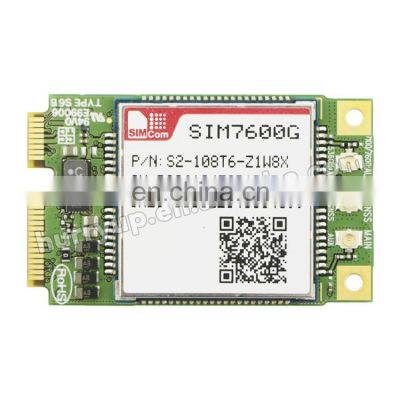

SIM7600G-PCIE complete multi-band LTE-FDD/LTE-TDD/HSPA+/UMTS/EDGE/GPRS/GSM module with PCIE adapter board

Product Description

Product Description
DescriptionSIM7600G-PCIE is a complete multi-band LTE-FDD/LTE-TDD/HSPA+/UMTS/EDGE/GPRS/GSM module solution in Mini PCIE type which supports LTE CAT1 up to 10Mbps for downlink and 5Mbps for uplink data transfer.It is combined with a SIM7600G (LCC) module and a Mini PCIE adapter board.General Features•Mini PCIE package•Control Via AT Commands•Supply voltage range: 3.0V~ 3.6V, 3.3V Typical•Operation temperature: -40℃ to +85℃•Dimension: 50.8*31*5.35mm•Weight: 12.6g•Bandwidth: 1.4/3/5/10/15/20MHz•3GPP E-UTRA Release 11 Date•LTE CAT4- Uplink up to 5Mbps- Downlink up to 10Mbps•HSPA+- Uplink up to 5.76 Mbps- Downlink up to 42 Mbps•UMTS- Uplink/Downlink up to 384Kbps•EDGE- Uplink/Downlink up to 236.8Kbps•GPRS- Uplink/Downlink up to 85.6KbpsOther Features•USB Driver for Microsoft Windows2000/XP/Vista/Win7/Win8/Win10•USB Driver for Linux /Android•RIL supporting for Android 2.4/4.0/5.0/6.0/7.0•MBIM to Win8•Firmware update via USB•TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/SMTP/SMTPS/DNS•SSL3.0/TLS1.0/TLS1.2•DTMF (Sending and Receiving)•Audio Playing•USB Audio and VoLTE•FOTA Interfaces•USB2.0 with High speed up to 480Mbps•UART•GPIO•Antenna: Support Primary/Rx-diversity/GNSS activeantenna•(U)SIM card (1.8V/3.0V)•Digital Audio through PCMApproval(plan)•FCC/IC•CE/ACMA FrequencyLTE-TDD:B34/B38/B39/B40/B41LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66UMTS/HSPA+:B1/B2/B4/B5/B6/B8/B19GSM/GPRS/EDGE:850/900/1800/1900MHzWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC

---
