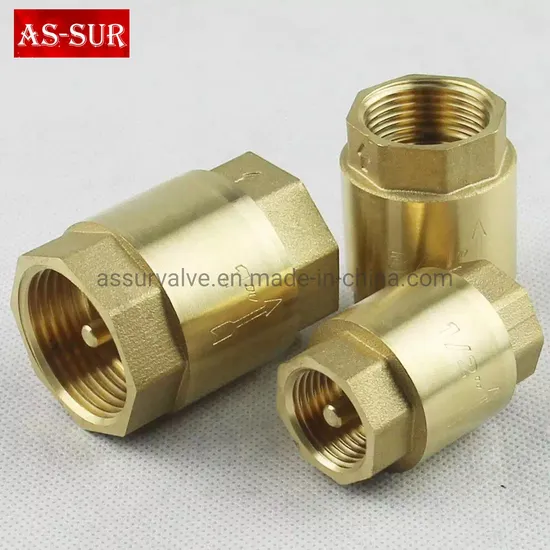

Spring Non Return Swing Valve Vertical Brass Check Valve

US$0.88-0.98 3,000 Pieces (MOQ)

Basic Info.

Model NO.
AS-C001
Material
Brass
Connection Form
Thread
Structure
Spring
Pressure
High Pressure
Function
Inside Water Flow
Sealing Form
Gland Packings Globe Valve
Flow Direction
Reversing
Standard
JIS,ANSI,GB,DIN
Application
Water Industrial Usage, Household Usage
Body
Brass
Bonnet
Brass
Spring
Stainless Steel 201
Cartridge
NBR
Thread Standard
ISO228
Working Pressure
1.6MPa to 2.5MPa
Finishing
Oringal Color
Rod
Brass or NBR
Working Temp.
-20 to 120 Degree
Name
Non Return Brass Spring Swing Check Valves
Transport Package
Export Standard Carton Package
Specification
1/2" to 4"
Trademark
OEM Brand
Origin
Zhejiang, China
HS Code
8481804090
Production Capacity
1000000PCS Per Year

Product Description

Water Pressure Reducing Non Return Vertical Brass Spring Swing Check Valves
Item Code Item Des. Size Weight
Grams		 Pcs/Ctn
AS-C001 Brass Body,Brass Bonnet,
Stainless steel 201 spring, NBR cartriadge		 1/2" 100 100
3/4" 130 100
1" 165 80
1 1/2" 400 32
2" 550 24
Brass Spring Check valve,Swing Check valve,
Non-ruturn valve,one-way valve
1.Brass Material Used
HPB57%-3/
HPB59%-1		 CW614N
CW617N		 CuZn39Pb3
CuZn40Pb2		 Lead Free Copper C3604
2.Basic Technical Dates
Type Of Thread Surface Treatment Temperature Pressure Medium 100% Leakage
Testing
ISO228/BSP
/NPT/JIS		 Orgianl Color
 -20≤T≤ 120ºC 1.6MPA to 2.5Mpa Water
Delivery: 25-35 days after receving deposit
Packing: standard export carton packing.
