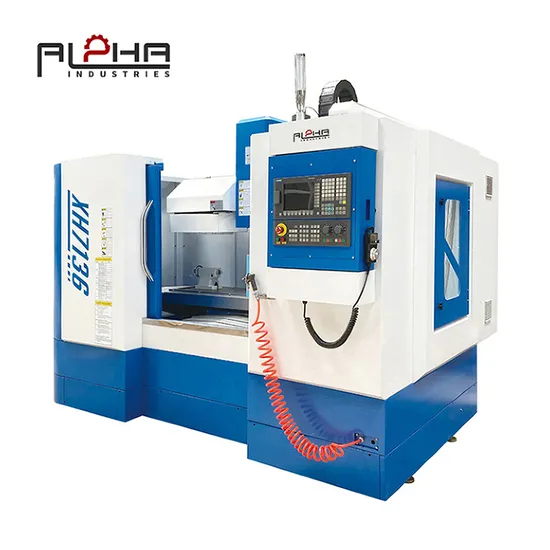

Large Scale Processing Equipment Xh7136 Industrial Machining Center for Selling

Product Description

Product Description
With a CNC milling body, this machine boasts strong carrying capacity, it also has three quench hardening guideways, wide guide rail & broad span as well as compact & reasonable structure and overall dimension; spindle are driven by frequency conversion motor via timing belt. The machine has milling, drilling, boring, reaming and etc. multiple functions, which could realize complex & high-precision components' machining upon plates, boards, shells, molds and etc., it is mainly applied to machine high-precision components, it could process plane & slope, groove, holes and etc. of small and medium-sized components. In overall, this milling machine is an ideal machining equipments for machine, electronics, instruments, meters, molds, molds and etc. industries.
*Base, column, worktable, middle slide, lifting slide and etc. all major components are casted and formed by high-strength materials and disposed by artificial seasoning treatment to ensure long-term stability of machine tool and provide guarantee for machine tool stable performance.
*This machine adopts hi-speed, hi-precision and hi-rigidity spindle units, suggesting strong carriage capacity with Max. rotating speed up to 6000rpm;
*X travel of worktable reaches 950mm, Y & Z guideways all adopts 950 mm,both Y & Z guideways are rectangular rails with supersonic frequency induction hardening & precision grinding. slide guideway has experience precision scraping and pasted compound PTFE materials; equipped with automatic obliged lubrication, frictional resistance of feeding motion declines and reduces low-speed creeping, which improves accuracy life of machine tools.
*X, Y and Z three axis adopts high-precision & high-strength ball screw and servo motor to ensure positioning accuracy of machine tools.
*Guideway and ball screw adopts protection devices to ensure cleaning of ball screw and rails as well as machine transmission & operation accuracy.
*Z axis adds clump weight balancing devices to ensure spindle motion stable and smooth.
*Power-driven lubrication devices could have forced-feed lubrication upon longitudinal, horizontal, vertical lead screws and guideways to diminish abrasion and ensure machine high-efficiency operation; meanwhile, cooling system could change amount of flow by adjusting spray nozzle to satisfy different processing demands.
*Machine operation system could suspend on the top right of machine through suspension arm; this machine conforms to human engineering principle; the spindle box could rotate certain angel, much more convenient & reliable.
Product Parameters

Model			XH7136
1	Main motor		5.5KW (Standard Accessories:Frequency Conversion Motor)
2	Spindle taper		BT40
3	Spindle speed		200-8000rpm
4	Distance of spindle end to		100~600 mm
	worktable plane
5	Distance of spindle hole center to column plane		460 mm
6	Worktable size		1250×360 mm
7	Worktable travel (L/H)		900/350 mm
8	Max. load of worktable		400kg
9	Worktable T Slot: No./Width/Interval		3/18/80
10	Max. Movement	X Axis	10 m/min
		Y Axis	10m/min
		Z Axis	8 m/min
11	Positioning Accuracy		0.02mm
12	Repeatable Positioning Accuracy		0.01mm
13	Machine Dimension (L*W*H)		3300×2280×2550mm
14	Machine Weight		3800 kg

Packing List

No.	Name	Specification	Qty.
1	Spring Clamp Handle	BT40-ER32-100	1
		(3-4, 5-6, 7-8, 9-10, 11-12, 13-14, 15-16)
2	Foundation Bolt	M16x450	6
3	Screw Nut		6
4	Washer		6
5	Operation Manual		1
6	Qualified Certificate		1
7	Packing List		1
8	KND1000MI USER Manual		1
9	Communication Software(Soft Disk)		1
10	Communication Cable		1

Sourcing List of Major Parts

No.	Name	Origin	Qty.
1	Spindle	Taiwan	1 Set
2	Pressure Boost Cylinder	Taiwan	1 Set
3	X Ball Screw Pair	Jiansuqijian	1 Pair
4	Y Ball Screw Pair	Jiansuqijian	1 Pair
5	Z Ball Screw Pair	Jiansuqijian	1 Pair

Standard Accessories

1	GSK 980MDi System
2	Taiwan BT40 Spindle Unit
3	16 funnel type tools

Optional Accessories

1	Spindle oil cooler
2	Arm type tools
3	10000rpm spindle
4	Spiral chip extractor
5	Heat exchanger

Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
FAQs
Q1: How is the warranty?
A1: Warranty time is 15 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: We have stock for popular models, we produce according to order.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 40 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services under Alpha brand.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
